Plaza Viva | Multi Function Innovation

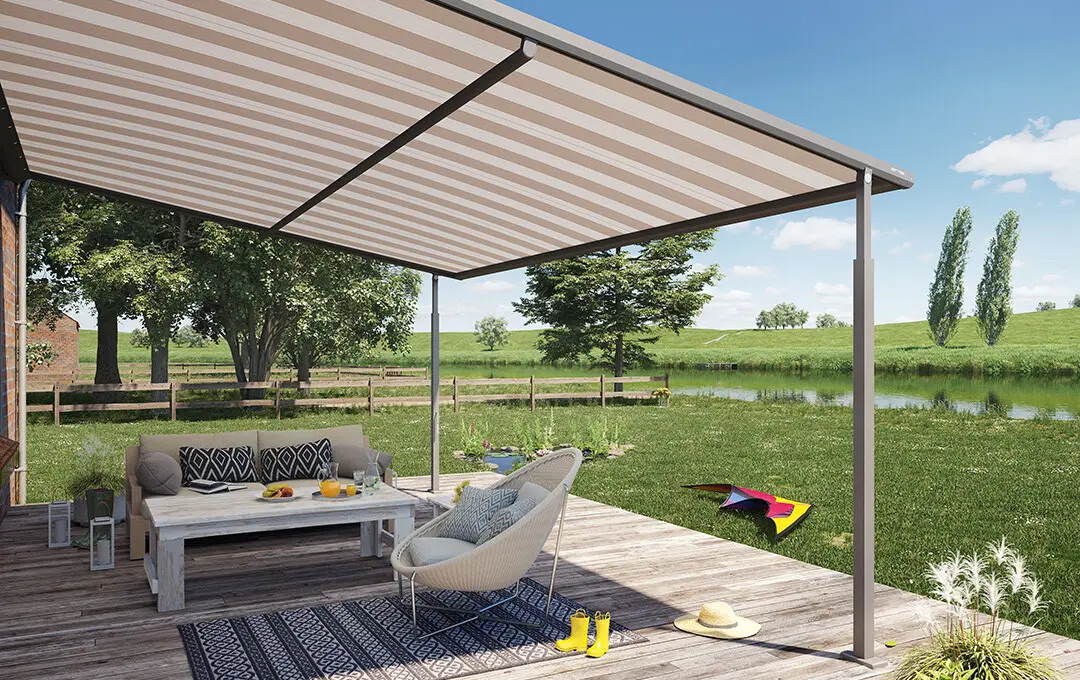

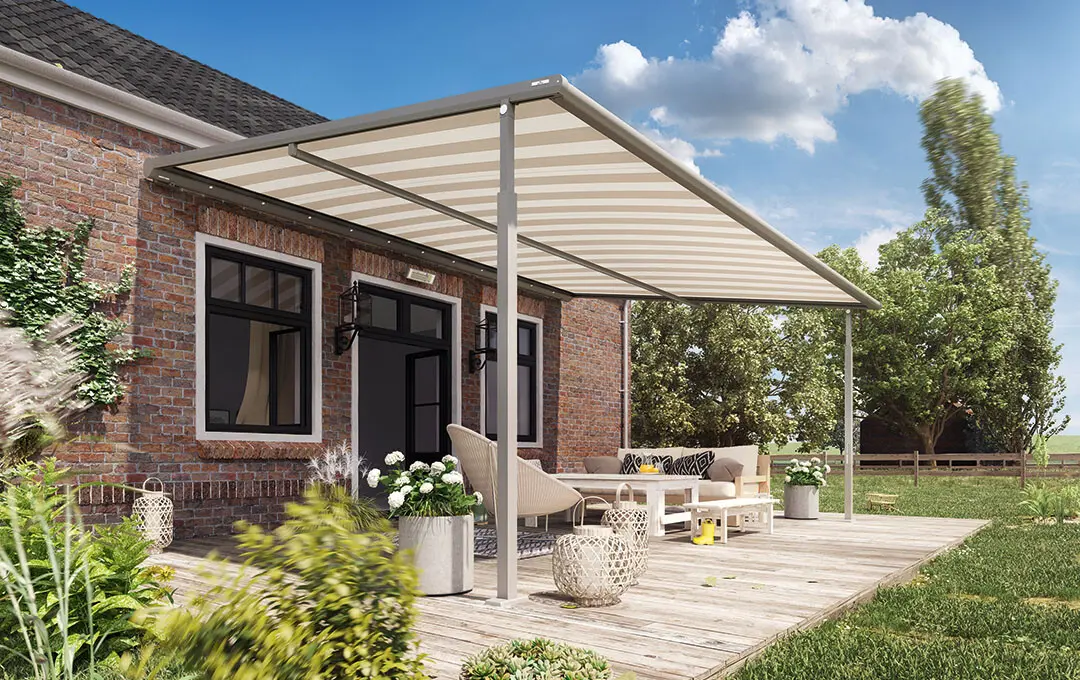

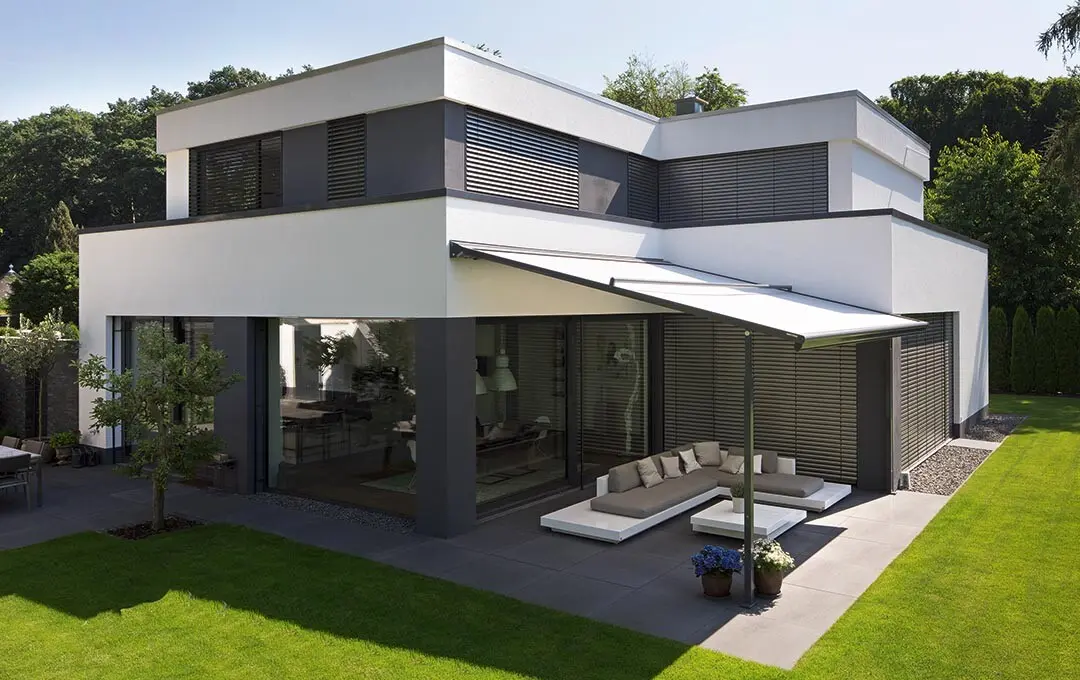

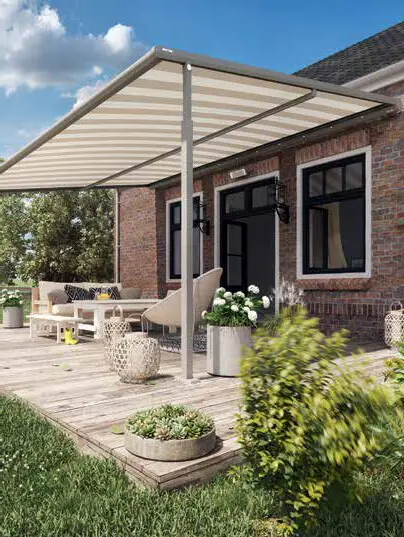

Plaza Viva provides very reliable weather protection for your favourite outdoor space. Incredibly wind-resistant, it integrates subtly into the overall look of the building & provides Width x Projection to a (max.): 6 m x 5 m. It offers a highly practical feature for facades without enough load-bearing capacity to mount a folding arm awning.
Technical innovations such as the optional adjustable telescopic post, the OptiStretch version, integrated LED lighting and gear handle operated Valance Plus leave almost nothing to be desired.


Plaza viva cassette

Plaza viva LED cassette
Plaza Viva | Overview

Awning Style:
Textile Pergola Awning | Protects the textile and mechanism from the elements
Max. Width x Projection:
6m x 5m
Max. Fabric Area:
30 m²
Options:
Stretch + Stretch LED + Opti Stretch + Opti Stretch LED
Valance Plus Option:
Max. Width: 6,000mm + Max. Projection (H): 1,000mm + 1,500mm + 2,100mm
Custom Colour Options:
47 Standard Frame Colours + 9 Trend Colours + 150 RAL Colours
Price Category:
Lowest to highest*
Plaza Viva | Showcase
The Plaza Viva can be used to direct rain off one side when the optional telescopic post is ordered with the Retractable Roof system – See video of how this works here:
Technical | Highlight

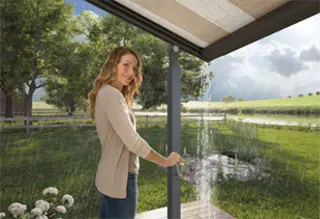

Optional telescopic post
So that rain water can drain off reliably from the Plaza Viva fabric, the optional telescopic post can be lowered using a gear handle to achieve the required pitch.

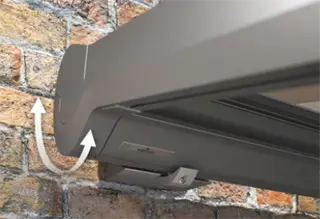

Bracket + Floating bearings
Wall bracket with floating bearing reduces the load on the whole construction when the optional telescopic post lowers the awning

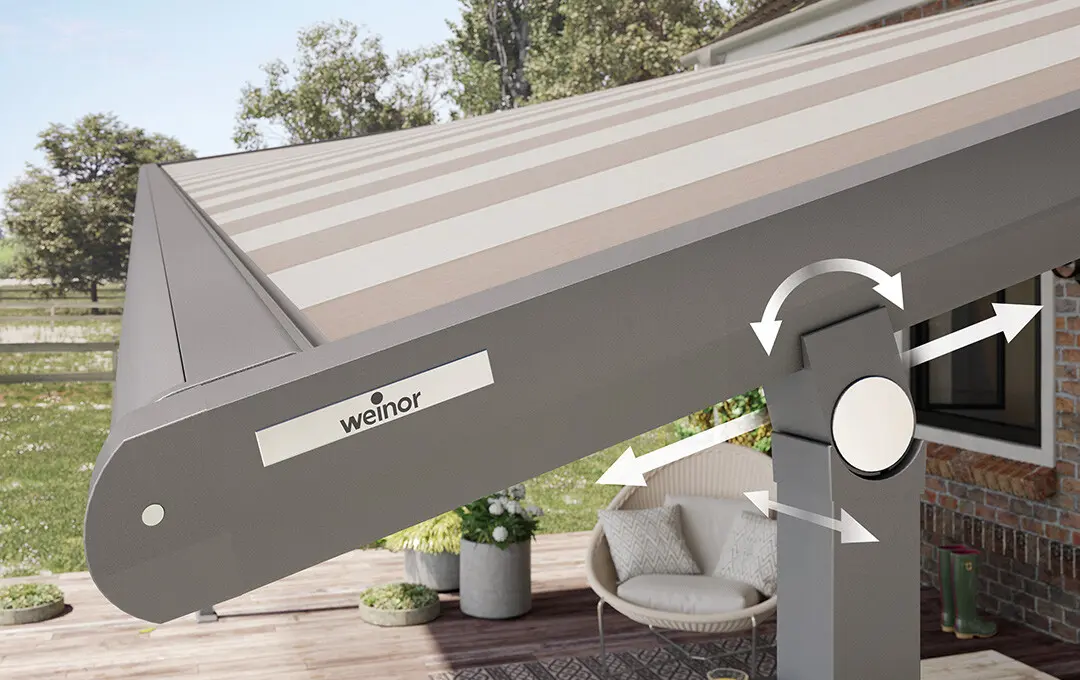

Compensation Joint
Thanks to the compensation joint on the telescopic post the awning construction can adjust flexibly to the new pitch when lowered.
Plaza Viva | Breakthrough Innovate + Function

Fabric support roller | Bottom

Fabric support roller | Top

Top support + Valance Plus

Stretch | Held securely on 2 sides

OptiStretch | Held securely on 4 sides

OptiStretch | Fully enclosed

Upper post compensation joint

Wall bracket + floating bearing

Elegant. No visible fixings
Plaza Viva| Product Features
Highly functional + Innovative technology:Sun, wind and rain protection. Incredibly wind-resistant, integrating subtly into the overall look of the building
With Plaza Viva textile pergola awning, use your patio even longer with even less worries – virtually regardless of the weather
Designed for use on facades that don’t have enough load-bearing capacity to mount a folding arm awning
Fully featured. Optional adjustable telescopic post, OptiStretch, integrated LED lighting & gear handle operated Valance Plus
Textile pergola awning features:Large areas can be covered – thanks to the sturdy posts and framework
New: telescopic post option for effective water drainage
Compensation joint and floating bearing
Reliable tension system – with new flat rope for quiet operation
Stretch and OptiStretch versions
Service opening hatch – convenient access for maintenance

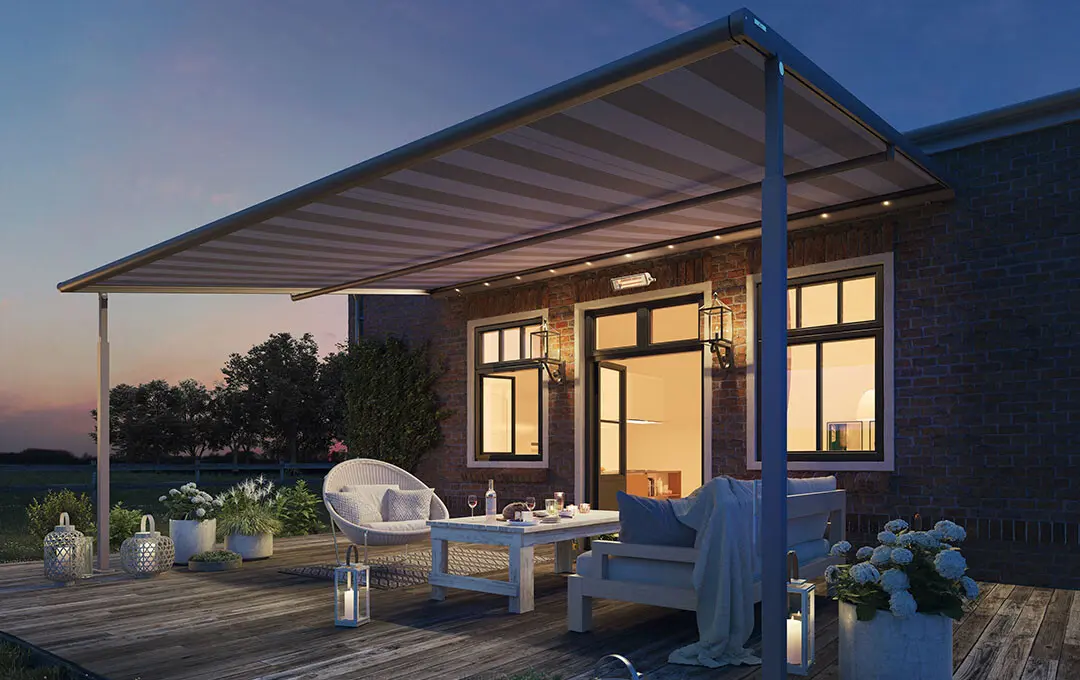

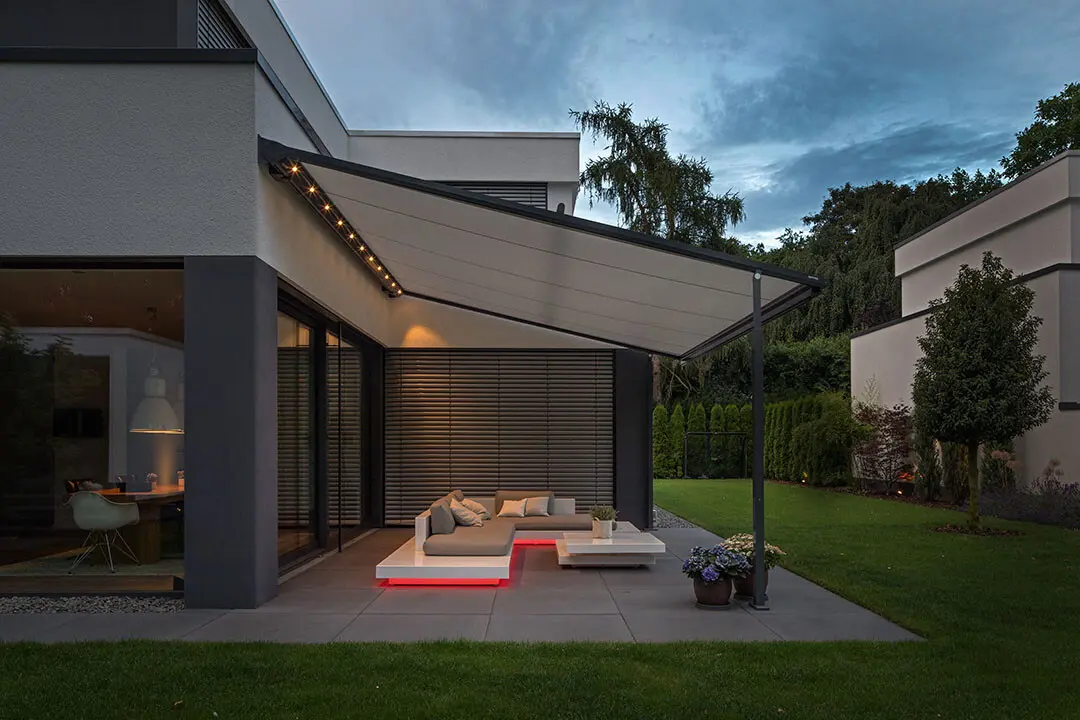

Atmospheric LED spotlights – for the ultimate environment after dark
Plaza Viva | Valance Plus option

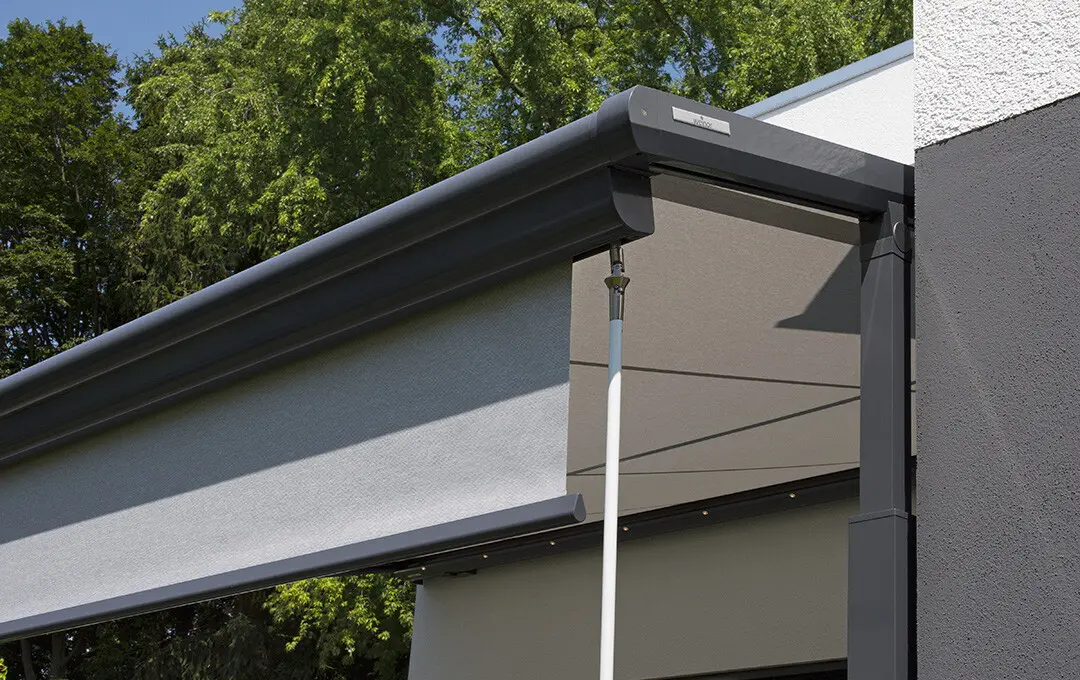

Valance Plus option | Privacy and sun protection from the front
The gear handle operated vertical sun protection is integrated elegantly into the Plaza Viva drop profile.
Glare protection and privacy protection up to a maximum valance height of 210cm
Only possible with gear drive, only extend and retract the Valance Plus with the telescopic post cranked up
Valance Plus use up to a Plaza Viva pitch of 4° to 20°.
With Valance Plus, the fabric support roller is always mounted
Can be combined optionally with the LED Design light bar | Not possible in combination with integrated LED lighting
Note: Valance Plus can not be retrofitted
Plaza Viva| Stretch + OptiStretch option
StretchProvides an extremely even tautness to the fabric positioning and performance.
Stretch option is held very securely on 2 sides. This option is cost effective and an easy installation.


Held securely on 2 sides. Cost effective solution.
OptiStretchCompletely enclosed all round, ensures optimum fabric positioning without any hanging or saggy fabric edges
On very large dimensions it also reduces the sag of the cover during operation.
Held tightly at the top and bottom. secure on all sides eliminating all lightgaps.

Held securely on 4 sides. No light gap


OptiStretch functionality.
Weinor Options | Design Your Custom System
Weinor | My Collections
My Collections, is Weinor’s new fabric range consisting of 3 different colour collections and ways. It’s a huge range of 143 new release colours patterns for you to select from. Weinor fabric quality and the manufacturing process is exceptional. Weinor fabrics are made from polyester or acrylic and are solution dyed for a superior colour fastness. High-quality pigments are stored in each individual fibre.
The result: especially good colour fastness and high UV resistance. Colours remain lastingly brilliant. This makes Weinor fabrics stand out from products made by other manufacturers where only the finished yarn is dyed. Thanks to the Teflon fabric coating and state-of-the-art nano technology, the surface is resistant to oil, water, dirt and prevents rot.
Weinor | Modern Basics Blue® | Sustainable Fabrics
16 New On-Trend Designer Fabrics. The new fabric collection from the Weinor design studio comprises 16 on-trend awning fabric designs in the latest trend colours. The fabrics impress due to their high quality and lasting, brilliant colour. Sustainability for environmentally conscious customer seeking more than just a durable quality product. Modern Basics | Blue unique fabrics are made with GRS-certified 85 % recycled PET fabric.
Weinor | Trend + RAL colours
Colours and shapes take on different meanings in a natural environment. They serve as warnings, camouflage or courtship.
For us people, colours and shapes also perform another function: they are a source of pleasure! Our houses and patios only really develop their own character when colour is applied, a character that reflects our personal taste.

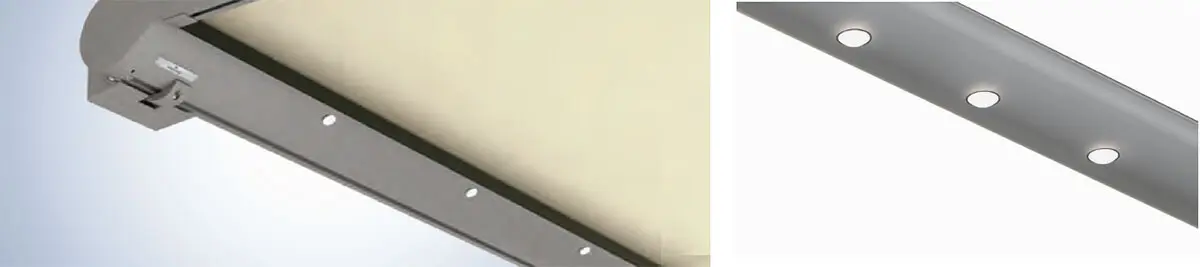

Weinor | Integrated LED Spotlights + LED Lightbars
Weinor LED light bars are the perfect lighting solution for any patio or outdoor entertaining space. Not only do they meet the primary need of lighting an area so you can continue to enjoy your space long after the sun has set - they are long lasting, eco-friendly and cost saving.
These small lights can pack a real punch, while still being pleasant to the eye and creating a beautiful ambience. Although they project the same amount of light as a 20 watt halogen, they have a lovely warm white light and use 85% less energy. The LED light bars come in over 200 frame colours and can be installed anywhere and retrofitted. You can also opt for the RGB light strip that offers and 48 colours and 3 whites.

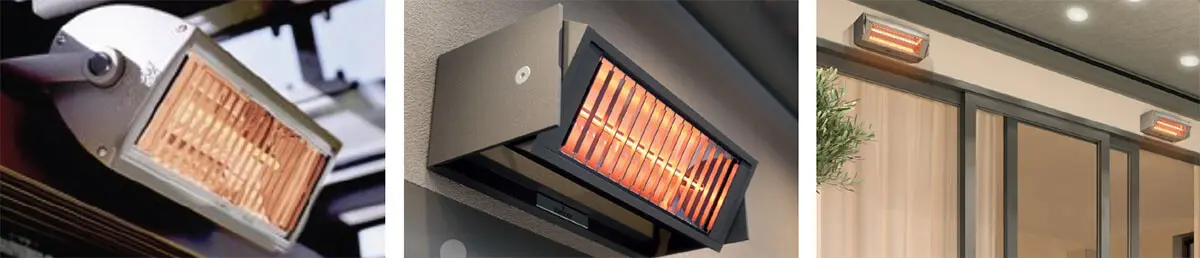

Weinor | Tempura + Tempura Quadrata | Instant Heat Infra Red Heaters
Maximise your investment. Extend and enjoy comfortable outdoor living all year round through even the coldest months with Weinor’s innovative Tempura and Tempura Quadra heating systems. Simple mount or easy retrofit.
The heater’s infrared rays generate instant heat and a pleasant warmth to the body as soon as the system is switched on. Infrared heat is constant, not reduced, lost or blown away with a breeze - as occurs with gas and electric heaters, resulting in a far more effective and cost saving use of the generated heat. Smallest size, maximum instant retained heat & lowest operating costs. Sort of a no brainer.
Tempura is a stylish round design and the Tempura Quadra offers an more architectural square design.
Weinor Exclusive Fabric + Frame Colours.
My Collection Fabrics
Sustainable Fabrics
Specialist Fabrics
Frame Colours
Downloads
Download the Plaza Viva brochure containing all product details and and full technical specifications.
International Awards for Innovation + Design Exellence
In recent years, Weinor won numerous design prizes for the superb design of its patio products. The awards confirm that the products we offer are not only high quality in technical terms, but also set high standards from a visual perspective.
Weinor Product Awards include:
iF Design Awards | Red Dot | Good Design | R+T Innovations | ICONIC Awards | German Design Awards | M&T Produkt des Jahres | Elu Produit du BTP par less Professionnels | Focus Open awards
