Plaza Viva + VertiTex II

Innovative all weather combination | Patio Roof + Exterior Rollers

Patio Roof + Exterior Roller | Designer System

The Plaza Viva retractable patio roof, combined with the new VertiTex II exterior roller
blind offers exceptional sun, rain, wind & glare protection. The seamless integration of
these two design award winning products from Weinor provide a high level of exterior
privacy. The slimline patio roof perfectly complements the exterior roller’s minimal cassette
sizes. The combined system visually presents an architectural & seamless appearance.

Custom made, the combination pair Weinor’s innovation & tried and tested state of the art
technology with the highest quality German materials and componentry.

weinor
patio roof and exterior roller blind combination

Plaza Viva + VertiTex II | Technical Specifications

Plaza Viva | Patio Roof

Versions:
Stretch: Clamped on 2 sides, cost effective solution
OptiStretch: Held captive on 4 sides, no light gap

Max. Width x Projection:
6m x 5m

Max. Fabric Area:
30 m²

Options:
Intergrated HighPower LED spotlights

Wind Resistance:
Resistant up to wind force 5

Frame Colours:
47 Standard Frame Colours + 9 Trend Colours + 150 RAL Colours

VertiTex II | Exterior Roller

Versions:
Channel: Can be used anywhere – light gap
Zip: Taut fabric. No light gap

Max. Width x Projection:
Zip: 6m x 3m | Channel: 6m x 4m

Max. Fabric Area:
Zip: 15m² | Channel: 14.4m²

Cassette 92:
Zip: (101 x 92mm) H up to 2.5m | Channel: H up to 4m

Cassette 112:
Zip: (121mm x 112mm) H to 3m

Headbox 112:
Zip 112 Headbox dimensions are: (121mm x 112mm)
Height to 3m (Star Screen, Perluca & Fiberglass
Height to 2.2m (Acrylic & Polyester)

Wind Resistance:
Resistant up to wind force 5

Frame Colours:
47 Standard Frame Colours + 9 Trend Colours + 150 RAL Colours

Plaza Viva + VertiTex II | Showcase

Plaza Viva + VertiTex II | Combined Excellence

combination of 2 weinor products

Combination of two tried and tested Weinor products

Plaza Viva patio roof is the slimline design weather all-rounder, which allows you to enjoy your precious outdoor space for longer.

VertiTex II exterior roller blinds in 2 minimal designer profiles, provide a high level of sun, rain and wind protection whilst ensuring your privacy.

The combination of these two tried and tested innovations creates a complete system with a seamless architectural style.

combination of 2 weinor products

Large widths possible, multi-section units too

The use of VertiTex II does not restrict the system width.
This exterior roller blind offers an expansive width to a maximum of 6m.
Multi-section units are also possible in this combination, on request.

combination of 2 weinor products

Slimline, unobtrusive, seamless design

Plaza Viva + VertiTex II also visually complement each other perfectly. The exterior roller blind’s small cassette sizes (92 and optionally 112 mm) perfectly match the pergola awning’s slimline look.
VertiTex II is available with the round or square cassette designs.

combination of 2 weinor products

Two versions of each. A wide choice:

VertiTex II: Zip and Channel
Channel: can be used anywhere, with light gap
Zip: taut fabric, no light gap

Plaza Viva: Stretch and OptiStretch (not shown)
Stretch: clamped on 2 sides, cost effective solution
OptiStretch: held captive on 4 sides, no light gap

VertiTex II | Round Profile | 92mm + 112mm

The classically round profile is perfect for any building style and will particularly suit those looking for a more smooth aesthetic on a more traditional home. The VertiTex Zip with round cassette is used as standard for Plaza Viva.

vertitex round 92 or 112 mm
vertitex 92mm round example

92mm | Round Cassette

vertiex 92mm round cassette
vertiex 92mm round

VertiTex II | Square Profile | 92mm + 112mm

The timeless square profile will fit seamlessly into any building aesthetic, particularly construction with modern, clean lines.
The VertiTex Zip with square cassettecan be ordered with the Plaza Viva on request.

vertitex square 92 or 112 mm
vertitex 92mm square example

112mm | Square Cassette

vertiex 112mm square cassette
vertiex 112mm square

Plaza Viva + VertiTex II | Numerous Versions

When using VertiTex II on Plaza Viva, a wide range of mounting options are available.
The different combination versions are shown in the table below.

Note: One locking bar and one wall profile are required per laterally mounted VertiTex II.
For versions with just a lateral VertiTex II (II, IV and VI), a front locking bar is required for safety reasons.
With just a front VertiTex II, one lateral locking bar and one wall post are required on the same motor side of the Plaza Viva and VertiTex II for cable arrangement.

View

View from above

Description

V1 view
V1 view from above

Plaza Viva + VertiTex II all round
1 Plaza Viva
3 VertiTex II
3 locking bars (left, front, right)
2 wall profiles including accessories

V2 view
V2 view from above

Plaza Viva + VertiTex II
left and right ¹
1 Plaza Viva
2 VertiTex II
3 locking bars (left, front, right)
2 wall profiles including accessories

V3 view
V3 view from above

Plaza Viva + VertiTex II
front and left ¹
1 Plaza Viva
2 VertiTex II
2 locking bars (left, front)
1 wall profile including accessories

V4 view
V4 view from above

Plaza Viva + VertiTex II left ¹
1 Plaza Viva
1 VertiTex II
2 locking bars (left, front)
1 wall profile including accessories

V5 view
V5 view from above

Plaza Viva + VertiTex II front and right ¹
1 Plaza Viva
2 VertiTex II
2 locking bars (front, right)
1 wall profile including accessories

V6 view
V6 view from above

Plaza Viva + VertiTex II right ¹
1 Plaza Viva
1 VertiTex II
2 locking bars (front, right)
1 wall profile including accessories

V7 view
V7 view from above

Plaza Viva + VertiTex II all round ¹·²
1 Plaza Viva
1 VertiTex II
2 locking bars (front, right)
1 wall profile including accessories

V8 view
V8 view from above

Plaza Viva + VertiTex II front,
locking bar /wall post left ¹·²
1 Plaza Viva
1 VertiTex II
2 locking bars (left, front)
1 wall profile including accessories

1 ) Viewed from the front 2 ) The motor side with VertiTex II front and the side of the locking bar depend on the Plaza Viva motor side.

VertiTex II Roller | Zip System

vertitex II zip

VertiTex II Zip | The wind-resistant version

For an area prone to wind, we recommend the VertiTex II Zip as the fabric is enclosed on both sides by the guide rails. Main Vertitex II benefits include:
• Optimal fabric tension & placement due to guide rails
• Excellent wind resistance
• Mostly sealed off to keep out insects
• Privacy and light control with zero light gaps on the side
• Whisper-quiet operation
• Noise minimised even in windy conditions

zip system

Zip System

The Zip system provides excellent stability & smooth operation due to:
• The elasticated guide profile that helps keep the fabric taut
• Side zips with an excellent ability to stabilise and guide the fabric
• Heavy evenly weighted bottom rail
• Rotating bottom rail bearing that prevents jamming and allows the bottom rail
to pivot even in high winds
• Two-part guide rails with fixed screws

VertiTex II Roller | Side Channel System

vertitex II side channel

VertiTex II Side Channel | The universal version

For areas that are in more sheltered areas and are not impacted by strong winds, we recommend the VertiTex II with side channels. Here, the fabric is reliably directed by the guide rails, along with the bottom rail; with a minimal light gap remaining between the fabric and rail. The VertiTex II Side Channel includes:
• The ability to reach a system height of 4m
• A bottom rail profile, secured by the pivoting bearing that glides up the inside of the side channel
• More installation options than the VertiTex

VertiTex II Roller | Patented Opti-Flow® System

vertitex II patented optflow

VertiTex II | Patented Opti-Flow® System
For perfect fabric positioning.

The Opti-Flow System®, patented by Weinor is a brilliant solution that ensures that taut fabric and roller tubes are supported at all times, providing a perfect position for the fabric along the entire length or the vertical awning.

Specially coated glide profiles and a floating fabric roller bearing allows this constant support and provides long lasting protection – even for fabrics up to 6m.

optiflow roller tube unrolled

Opti-Flow Roller tube is unrolled:

The glide profile 1 supports the roller tube along its entire length and thus
effectively prevents sagging

optiflow roller tube rolled up

Opti-Flow Roller tube is rolled up:

The roller tube steadily rolls into its holder 2 . The glide profile continues
to provide support along its entire length.

Weinor Options | Design Your Custom System

Weinor offers a range of options for customers to design their custom patio system. With a variety of materials and colours to choose from, you can create a personalised outdoor space that perfectly complements your home and style.

Weinor | My Collections 2



My Collections 2 is Weinor’s new fabric range consisting of 3 different colour collections and ways. It’s a huge range of 143 new-release colour patterns for you to select from. Weinor fabric quality and the manufacturing process are exceptional. Weinor fabrics are made from polyester or acrylic and are solution dyed for superior colour fastness. High-quality pigments are stored in each individual fibre.

The result: especially good colour fastness and high UV resistance. Colours remain lastingly brilliant. This makes Weinor fabrics stand out from products made by other manufacturers, where only the finished yarn is dyed. Thanks to the Teflon fabric coating and state-of-the-art nano technology, the surface is resistant to oil, water, dirt and prevents rot.

weinor fabrics my collections 2

Weinor | Modern Basics Blue® | Sustainable Fabrics



16 New On-Trend Designer Fabrics. The new fabric collection from the Weinor design studio comprises 16 on-trend awning fabric designs in the latest trend colours. The fabrics impress due to their high quality and lasting, brilliant colour. Sustainability for the environmentally conscious customer seeking more than just a durable quality product. Modern Basics | Blue unique fabrics are made with GRS-certified 85% recycled PET fabric.

weinor modern basics blue sustainable fabrics

Weinor | Trend + RAL colours



Colours and shapes take on different meanings in a natural environment. They serve as warnings, camouflage or courtship.

For us people, colours and shapes also perform another function: they are a source of pleasure! Our houses and patios only really develop their own character when colour is applied, a character that reflects our personal taste.

Design and colour play a significant role in adding character and personalisation to our homes and patios. They serve a functional purpose and bring joy and pleasure to those who live in them. By incorporating colour, living spaces truly come to life and showcase individual tastes and preferences.

weinor frame colours

Weinor | Integrated LED Spotlights + LED Lightbars



Weinor LED light bars for awnings are the perfect lighting solution for any patio or entertaining outdoor space. Not only do they meet the primary need of lighting an area so you can continue to enjoy your space long after the sun has set — they are long-lasting, eco-friendly and cost-saving.

These small lights can pack a real punch while still being pleasant to the eye and creating a beautiful ambience. Although they project the same amount of light as a 20-watt halogen, they have a lovely warm white light and use 85% less energy. The LED light bars come in over 200 frame colours and can be installed anywhere and retrofitted. You can also opt for the RGB LED strip lights that offer 48 colours and 3 whites.

weinor integrated LED lights

Weinor | Tempura + Tempura Quadrata | Instant Heat Infrared Heaters



Maximise your investment. Extend and enjoy comfortable outdoor living all year round through even the coldest months with Weinor’s innovative Tempura and Tempura Quadra heating systems. Simple mount or easy retrofit.

The heater’s infrared rays generate instant heat and a pleasant warmth to the body as soon as the system is switched on. Infrared heat is constant, not reduced, lost or blown away with a breeze - as occurs with gas and electric heaters, resulting in a far more effective and cost saving use of the generated heat. Smallest size, maximum instant retained heat & lowest operating costs. Sort of a no brainer.

Tempura is a stylish round design and the Tempura Quadra offers a more architectural square design.

weinor instant heat patio heaters

Weinor Exclusive Fabric + Frame Colours.

My Collection 2 Fabrics

Sustainable Fabrics

Specialist Fabrics

Frame Colours

Downloads

Download the Plaza Viva brochure containing all product details and and full technical specifications.

Blinds by Peter Meyer complete brochure

Full Product Brochure

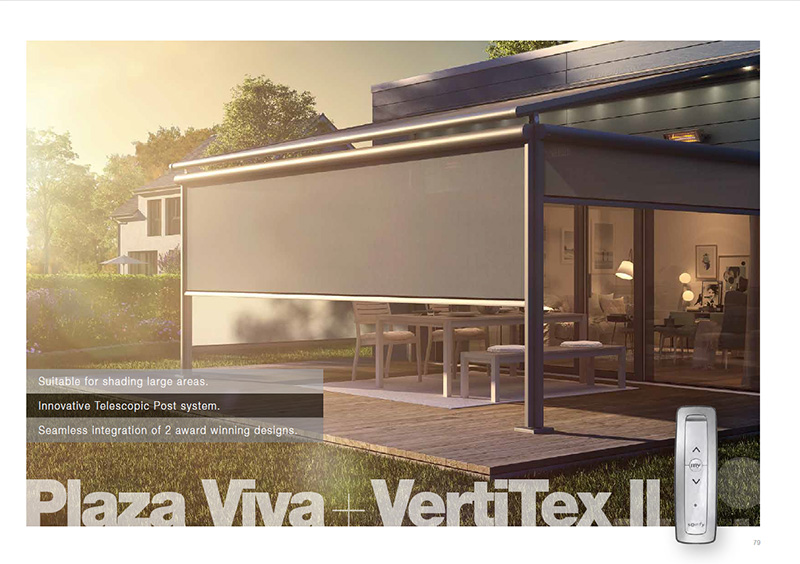

plaza viva vertitex brochure
