Silent Gliss | Hand Drawn Curtain Tracks
The world's finest hand operated curtain tracks. Unprecedented silenceSimple & economical curtain tracks.
Hand operated curtain tracks are the most economical and simple to use.
The Silent Gliss hand drawn range meets the needs of both commercial and domestic buildings. Inherently safe by design, these hand drawn curtain tracks suit all domestic installations, as well as a wide range of commercial applications including hotels, retail, restaurants and public spaces.
Unobtrusive, elegant and smooth operation. Durable and maintenance free, our hand drawn curtain tracks can be bent for curved applications and are available in standard or Wave options. Available Australia wide
Silent Gliss Track Options

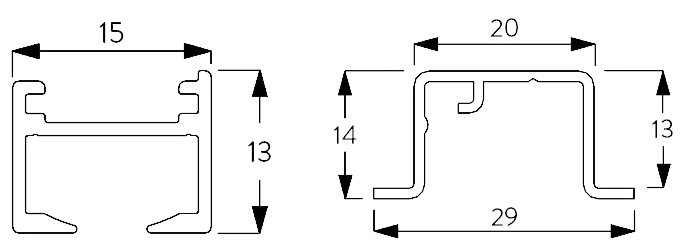

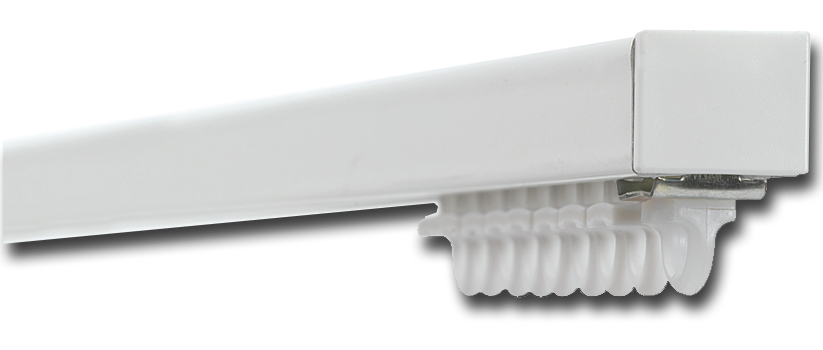

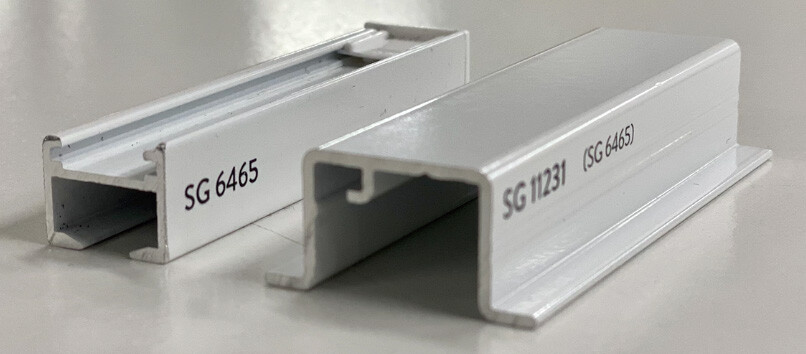

NEW | SG 6465 | SG 6465 Recess
Hand Operated Curtain Track
Application:
• Medium duty hand operated track system.
Product information:
• Standard or Wave (60mm or 80mm glider spacings available) headings
• Available in Top + Face fit.

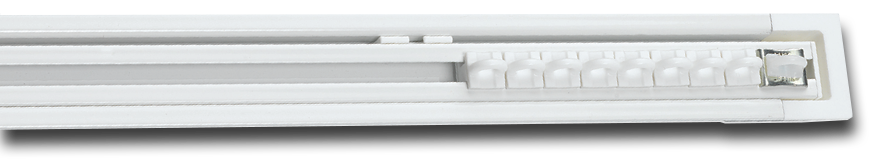

• Can also be flush ceiling mounted when paired with matching recessed profile
• Bendable in both directions – 80mm minimum radius.
• Brackets available for top, face or extended face fixing
(dual track fixing is also available).
• Standard length 6m. Joinable.
• 2C glider technology. The sound of silence (More)
Colours:
• White Powdercoat Std. finish .+ Custom Powdercoat opt
Download:
• SG 6465 Technical Brochure
Hand Drawn Curtain Tracks | Showcase
@barnesinteriors

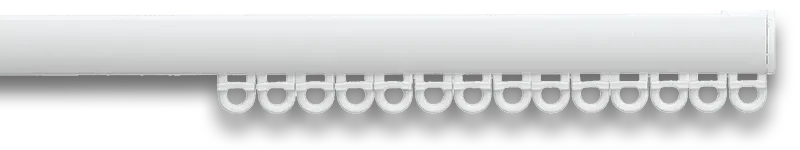

SG 6010
Hand Operated Curtain Track
Application:
• Light to medium duty hand operated track system.
Product information:
• Top fixing only – looks the same from both sides with no visible fixings
• Standard or Wave (60mm or 80 glider spacings available) headings.
• Bendable in both directions – 200mm minimum radius.
• Standard length 6m. Joinable.
• 2C glider technology. The sound of silence (More)
Colours:
• Natural anodized or white powdercoat finish
Download:
• SG 6010 Technical Brochure
Hand Drawn Curtain Tracks | Showcase

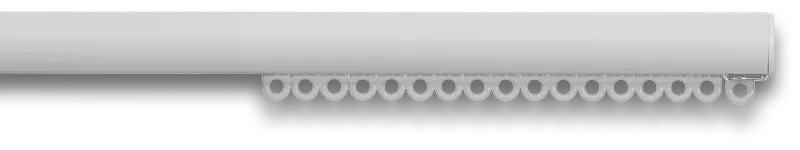

SG 6840 | Formerly SG 3840H)
Hand Operated Curtain Track
Application:
• Medium duty hand operatedtrack system.
Product information:
• Standard or Wave (60mm or 80mm glider spacings available) headings – roller gliders also available for heavier curtains with standard headings
• Ideal in top fix situation. Looks the same from both sides with no visible fixings
• Bendable in both directions – 200mm minimum radius
• Brackets available for top, face or extended face fixing (dual track fixing is also available).
• Standard length 6m. Joinable.
• 2C glider technology. The sound of silence (More)
Colours:
• Natural anodized or white powdercoat finish
• NEW Matte Black Powdercoat
- Natural Anodised Finish + Matte Black + White Powdercoat | Custom Powercoat opt.
Download:
• SG 6840 Technical Brochure
Hand Drawn Curtain Track | Standard + Wave

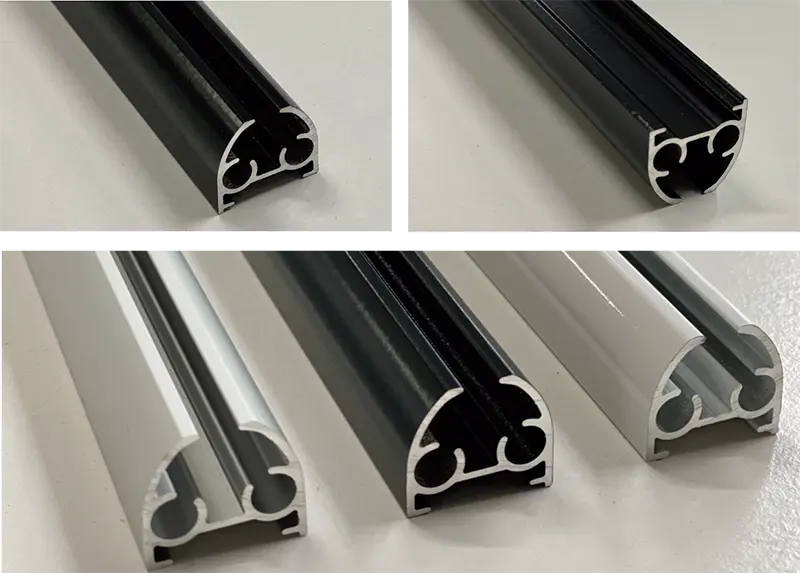

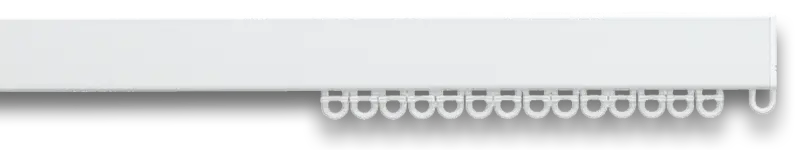

SG 6380
Hand Operated Curtain Track
Application:
• Medium to heavy duty hand draw track system.
Product information:
• Standard or Wave (60mm or 80mm glider spacings available) headings – roller gliders also available for heavier curtains with standard headings
• Bendable in both directions – 200mm minimum radius
• Standard length 6m. Joinable.
• 2C glider technology. The sound of silence (More)
Colours:
• Natural anodized or white powdercoat finish
Download:
• SG 6380 Technical Brochure
Silent Gliss | Ceiling Curtain Track |

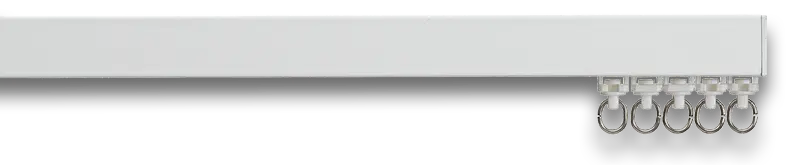

SG 6970 | Formerly SG 5605
Hand Operated Curtain Track
Application:
• Heavy duty hand draw track system.
Product information:
• This is a hand drawn version of the SG 5600 motorised curtain track system & offers similar features with regard to:
• 2C glider technology. The sound of silence (More)
• Curtain headings
• Available in Top + Face fit.
• Can also be flush ceiling mounted when paired with matching recessed profile
• Bendable in both directions – 250mm minimum radius
Colours:
• Natural anodized or white powdercoat finish
Download:
• SG 6970 Technical Brochure
Combining new coated tracks with our
new two component technology - 2C gliders.
The premium 2C gliders and rollers (patent pending), combined with the specially coated tracks
allow the curtain to move smoothly and silently. These gliders are manufactured using 2 materials,
a hard component which ensures stability and a soft ‘filling’ to absorb the noise. The end result is
unprecedented silence.
New 2C Glider Technology.
A combination of two high quality materials designed as Hard & Soft components,
Hard component for stability and perfect gliding.
Soft component combination absorbs noise emissions.
Designed for wave cord.
Patent pending.
2C Technology | The Sound of Silence | See how the technology works

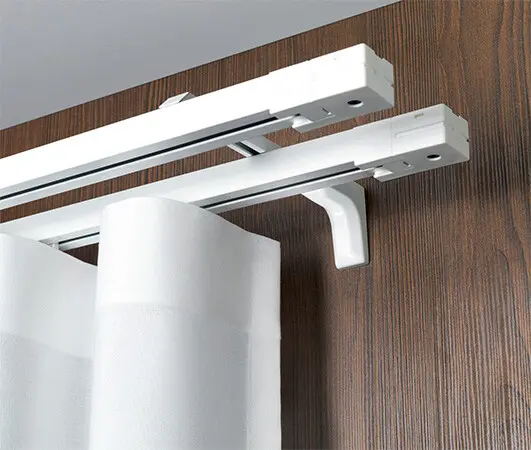

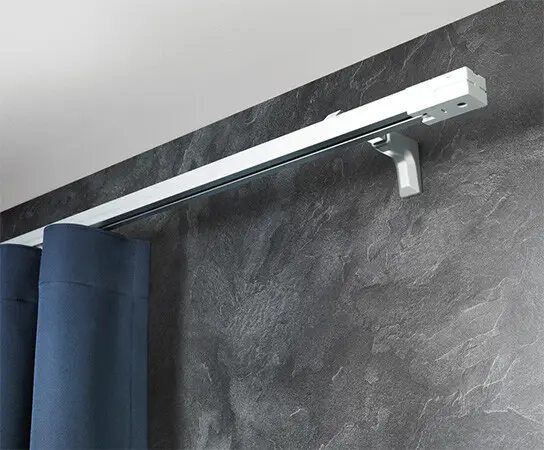

SG 5600 | Smart Fix
Smart Fix | Product Information
• Smart Fix offers the ultimate flexibility and ease of installation.
• Modern, versatile design:
• Silent Gliss systems can now be f itted with Smart Fix, a uniform bracket range for use across all our systems.
• This new design includes magnetic metal covers which are easy to fit and elegantly hide the screws.
• Smart Fix replaces a total of 51 brackets and significantly reduces the range to only 22 brackets! options (3 brackets with slot).
• Can also be flush ceiling mounted when paired with matching recessed profile
Square Smart Fix
• Contemporary designed brackets with a lower down-stand, ideal if fitting space is limited.
• A total of 9 brackets including fixed length and adjustable options (3 brackets with slot).
Universal Smart Fix
• A bracket console with 3 different extension arms for ultimate flexibility and adjustability.
Download:
• Smart Fix Brochure
