Simply Cell | Freehanging | Honeycomb Blinds

Highly innovative system design with patented cordlock
Home > Interior > Cellular Blinds > Simply Cell Freehanging Honeycomb Blinds

Honeycomb | Vertical + Special Shapes

Blinds by Peter Meyer’s new and improved Honeycomb blinds system is revolutionary in its design and pioneering in its technological capabilities.

Simply Cell Freehanging Honeycomb Cellular blinds are particularly innovative with the help of their unique patented cordlock that allows you to operate the blind from different angles. When opening, simply pull the cord to the middle of you honeycomb blind and the laws of gravity will work its magic. When closing your blind, you can pull the cord in any direction – even downwards vertically.

The totally new Simply Cell fabric collection includes 190 fabrics to suit our freehanging Honeycomb Cellular blinds.

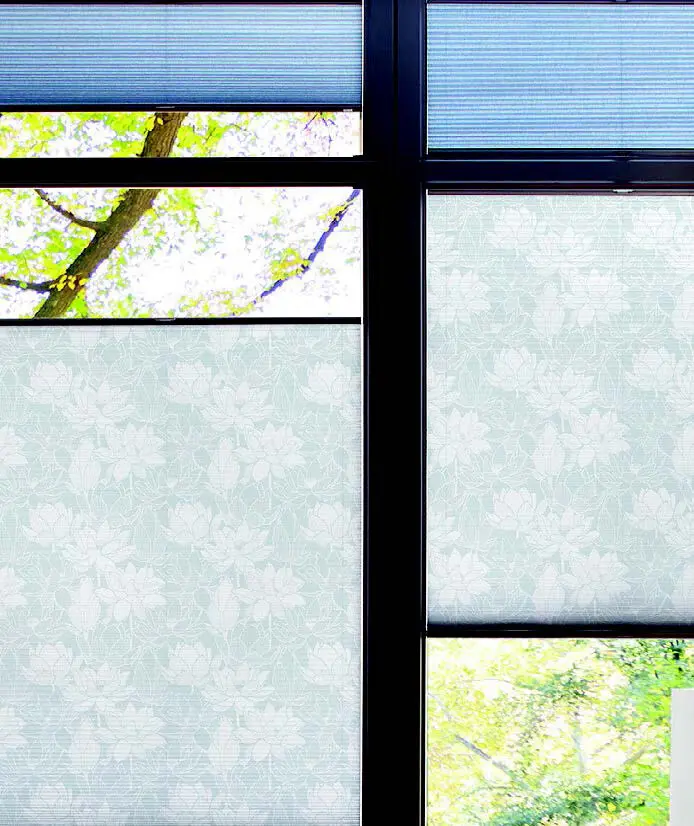

freehanging honeycomb blinds vertical and special shapes

New Release
Honeycomb Blind | New System

Note: ‘System’ video shows Pleated Blinds. Our Honeycomb Cellular Blind Fabrics use an identical system.

New Release
Honeycomb Blind | 190 New Fabrics

New System Release
Freehanging | Honeycomb Blind | Selector

honeycomb freehanging blinds F1
honeycomb freehanging blinds F2
honeycomb freehanging blinds F3
honeycomb freehanging blinds F Touch
honeycomb freehanging blinds F4
honeycomb freehanging blinds FE A
honeycomb freehanging blinds FE
honeycomb freehanging blinds F Slope

New
Freehanging
| Honeycomb Blind | Features

Operation
Cord Lock
Chain Drive
Cordless
WireFree battery
Hardwired motorised operation

Product Information
Range: M-L
Fitting: Face, Recess

Features
Modern Profile Design
Unique Cord lock
Cordless operation, Motorised (Battery and Hardwired)
Day/Night + Top Down Bottom up Solutions
Hidden installation brackets
Special Shapes
Colour coordinated endcaps

Colours
Multiple Colour Ranges
Matt White, Silver, Matt Black-Brown, Bronze, Matt Anthracite, Silver Brushed | VS 2 Only (extra charge), Matt Grey | VS 2 Slide, VS 2 Slide Comfort + DF Comfort Only.

Fabrics
Sheer, Screen, Light Filtering,
Dimout + Blockout

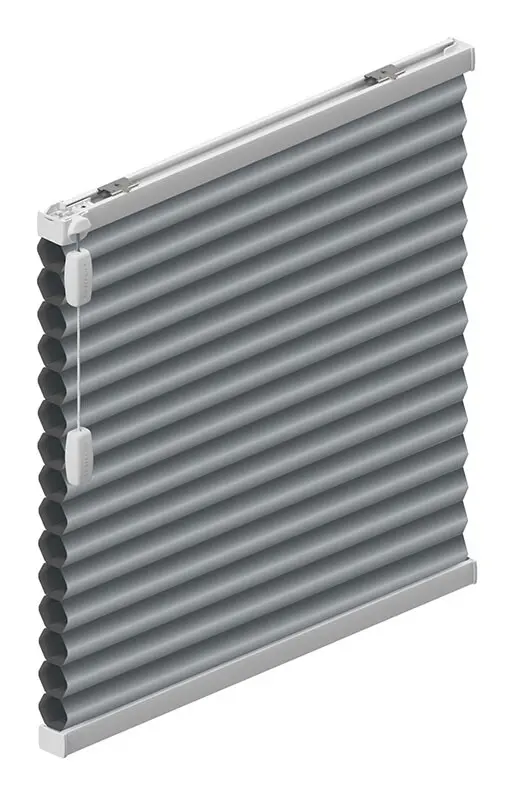

Freehanging honeycomb blinds features

Freehanging | Honeycomb Blind | Showcase

Blinds by Peter Meyer

New
F1
| Freehanging Honeycomb Blind | With Cord Operation

Cord lock operated.
Secured with cleverly hidden mounting clips at the top and operated by the new patented cord lock.

For opening: simply pull the cord to the middle of the pleated blind and gravity will take care of the rest.
For closing: you can pull the cord in any direction, even vertically downwards.

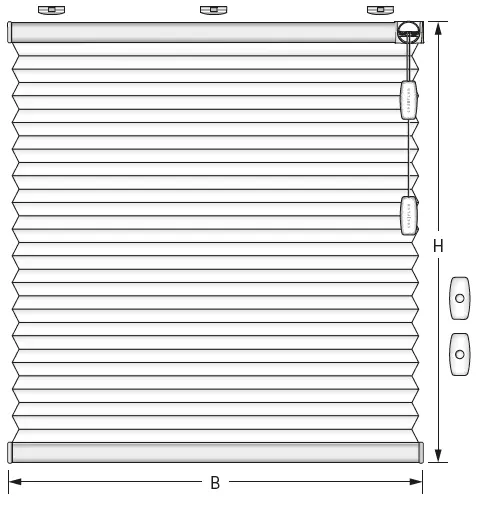

F1 freehanging honeycomb blind

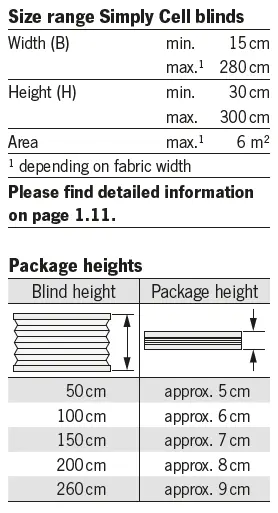

F1 freehanging size and height

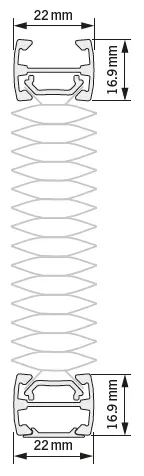

F1 freehanging dimensions

guide wireNotes
Also available with guide wires (extra charge).
Operation possible on left or right (please specify).

F1 freehanging colours

New
F 2
| Freehanging Honeycomb Blinds | With Cord Operation

Top Down/Bottom Up
Secured with cleverly hidden mounting clips at the top and operated by the new patented cord lock.

This system has 2 cord locks and a mid-rail that drops down from the top rail to maintain privacy from below while allowing you to see out at the top and maintain airflow on a sash window where the window drops down at the top.

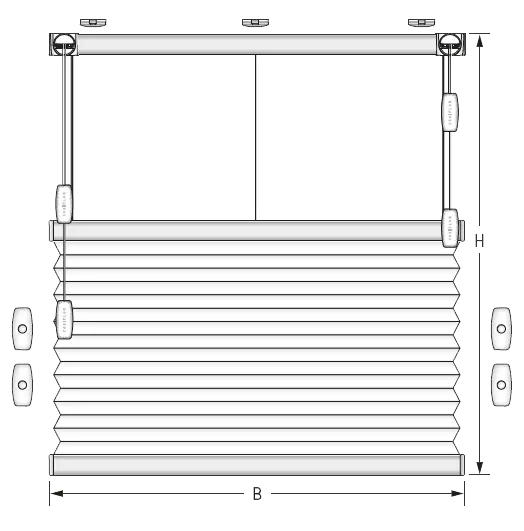

F2 freehanging honeycomb blind
F2 freehanging size and height
F2 freehanging blind dimensions

guide wiresNotes
Also available with guide wires (extra charge).
F2 blinds always with two cords.
Cords in the view field.

F2 freehanging blind colours

New
F 3
| Freehanging Honeycomb Blind | With Cord Operation

Day/Night Solution
Utilising 2 fabrics gives the customer the option of combining a blockout fabric with a light filtering or sheer fabric

Allows for privacy and light control from the blockout combined with maintaining your view through the sheer fabric or letting light filter into the room with the translucent fabrics.

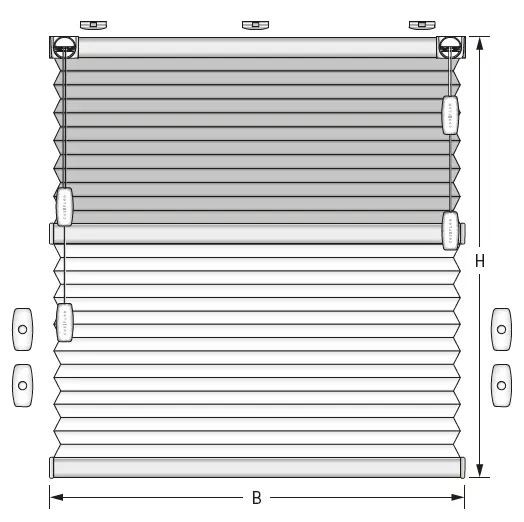

F3 freehanging honeycomb blind

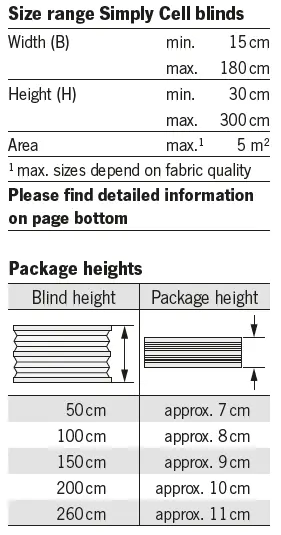

F3 freehanging size and height

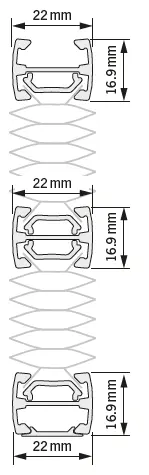

F3 freehanging dimensions

guide wireNotes
Also available with guide wires (extra charge).
F3 blind always with two cord locks.
Unless specified otherwise, the black out fabric is always at the top.

F3 freehanging colours

F 1 | F 2 | F 3 | Size Limitations

model type
max. height in cm (refer material properties)
max. are in m2
F 1
260
5
230
4
170
3
F 2
260
5
230
4
170
3
F 3
260
4
230
3
170
2

New
F Touch
| Freehanging | With Operating Handle

Cordless Operation
Simply push or pull the bottom rail to the desired finished position.

This cordless system is great for kids bedrooms where cords or chains are not desired.
They are also great for general windows and sliding doors where you don’t want chains or cords hanging down.

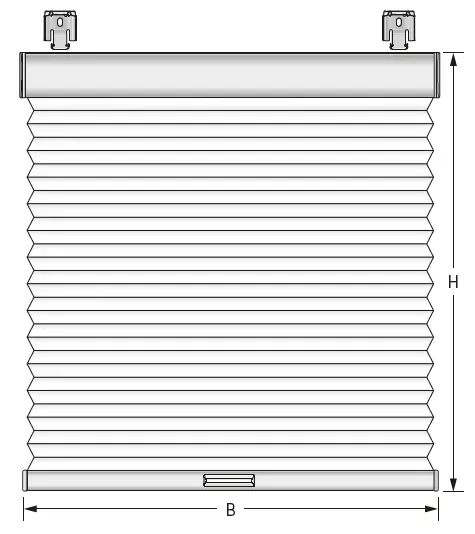

F touch freehanging honeycomb blind

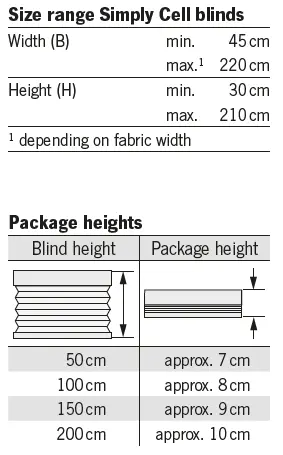

F touch size and height

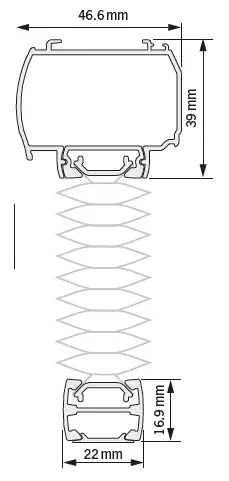

F touch dimensions

Note
Not available with guide wires.

F touch colours

New
F 4
| Freehanging | With Chain Operation

Chain Drive
One of our most popular styles of Free Hand blind as it avoids having to tie off lots of cords.

Operated via a continuous loop chain
with in built patented child safety where the chain drive can be removed from the headrail to avoid danger.

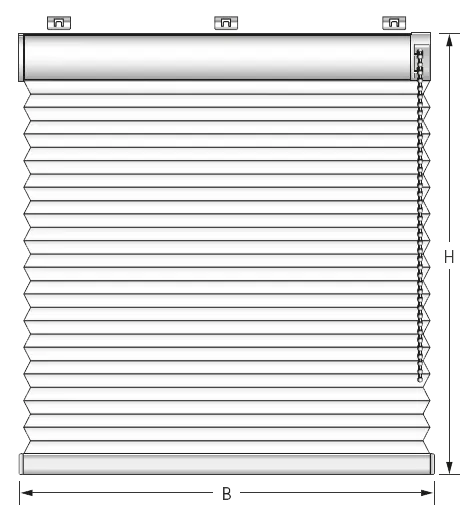

F4 freehanging chain operated honeycomb blind
F4 freehanging size and height

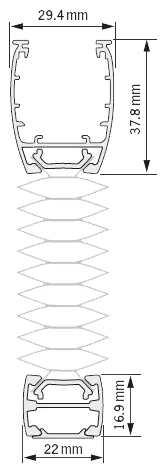

F4 freehanging dimensions

F4 freehanging notesNotes
Also available with guide wires (extra charge).
(max. vertical tilting angle then is 15°).

Operation possible on left or right (please specify).
No protruding gear at the side.
Child Safe detachable chain drive gear can be easily re-inserted.

F4 freehanging colours

New
FE A
| Freehanging | With 7.4v Battery Motor

Battery operated wire free solution
Brand new to the range and whisper quiet, these wire free battery operated free hang blinds are ideal for any window and mean there are no chains or cords to deal with.

Simply press up or down on your remote to operate with ease.
Recharge the battery by removing the stopper in the headrail and plugging in your charger.
A great benefit is that you also don’t need an electrician to hard wire power to your windows.

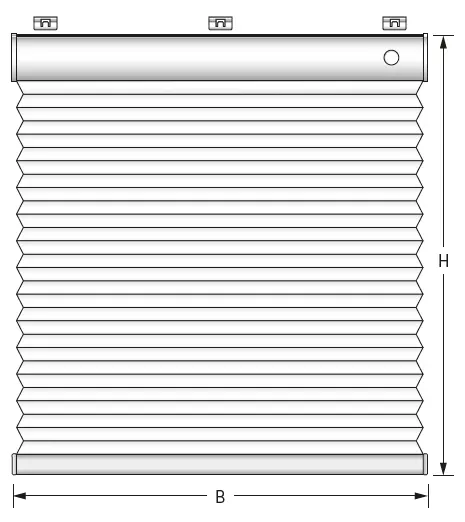

FE A freehanging motorised honeycomb blind

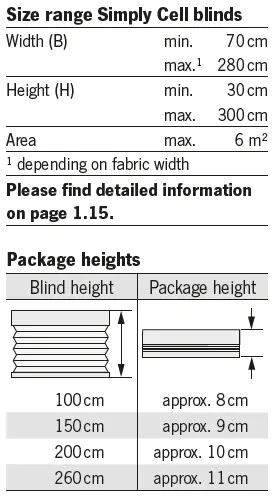

FE A size and heights

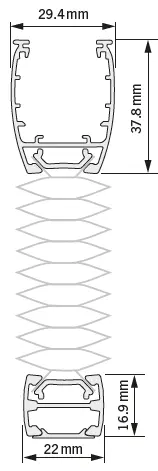

FE A dimensions

guide wireNotes
Also available with guide wires (extra charge).
(max. vertical tilting angle then is 15°).
Battery connection possible on left or right (please specify).
Charging socket in the front of the head rail.
Not suitable for installation in humid areas and damp locations.

FE A colours

New
FE
| Freehanging | With 24v Motor

Hard Wire Low voltage option
Great for integrating with home automation and when can’t easily access to recharge your blinds.

These hardwired blinds also avoid the cords or chains but will require an electrician to supply power to the windows.

FE freehanging motorised honeycomb blinds
FE size and height
FE freehanging dimensions

guide wiresNotes
Also available with guide wires (extra charge).
(max. vertical tilting angle then is 15°).
Cable outlet possible on left or right (please specify).
Not suitable for installation in humid areas and damp locations.

FE freehanging colours

New
F Slope 2
| Freehanging | Special Shape Blinds

Shaped Blind
Cord lock operated shaped blinds

Fabric stack can raise all the way up to the diagonal.

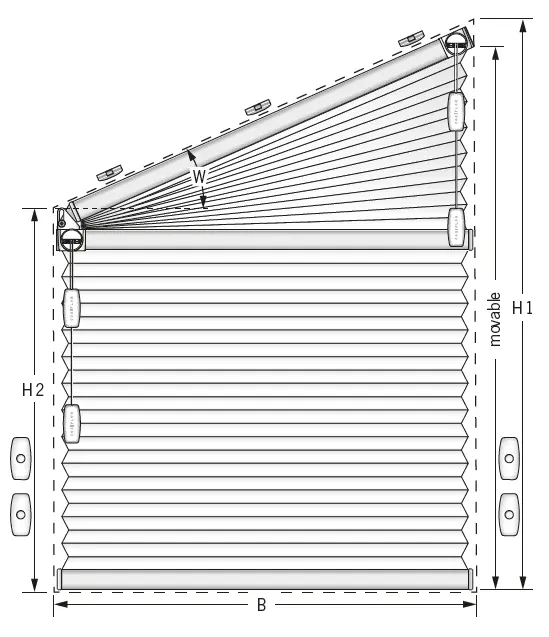

F Slope 2 freehanging special shape honeycomb blinds

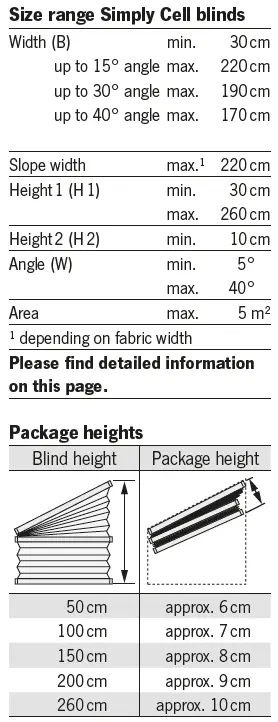

F Slope 2 size and height

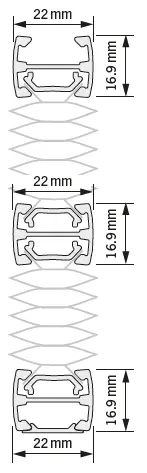

F Slope 2 dimensions

Notes
The tall height (H1) can either be on the left or right.
Not available with guide wires.
The hanging can be pulled up to the sloped rail.
Consider adaptors to level angled window rebates.
Operation on the low side for the bottom hanging, on the high side for the top hanging.
This blind is designed for windows at a maximum angle of 15°!

F Slope 2 colours

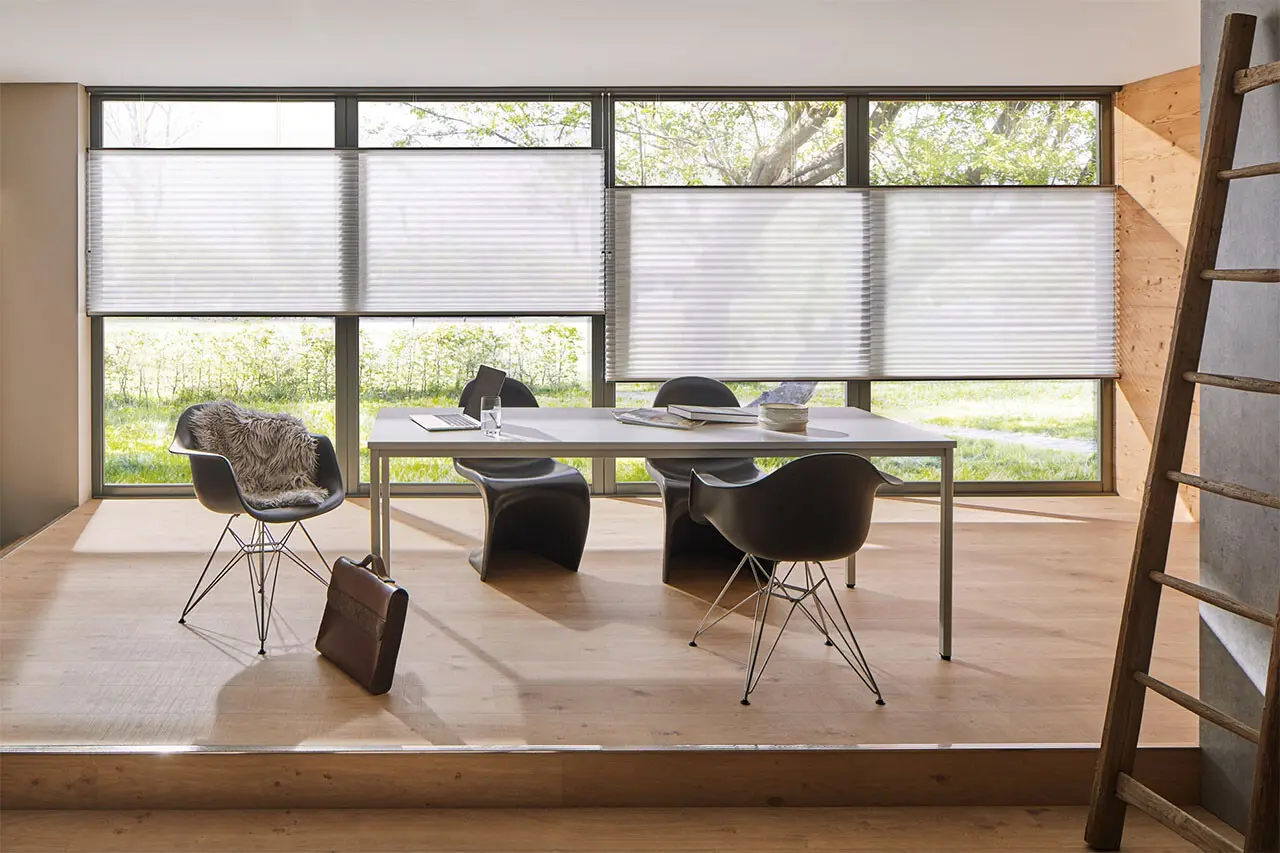

Freehanging honeycomb blinds

New
Operation
| Freehanging Blind | Options

There are 4 different operating options for freehanging Simply Cell blinds to choose from.
These model types generally have a fixed head rail and a freely movable hanging with bottom rail.

cord lock

Cord lock

Through the operation of the cord the hanging of the blind is moved to the
desired position.

The cord lock ensures the latching.

motorised blind FE A

Motorised blind FE A

Through an integrated 7.4 V battery motor the hanging of the blind is moved to the desired position.

Operation is via radio remote control.

F touch

F Touch

Through the operation of the bottom rail the hanging of the blind is moved to the desired position.

Not possible in combination with guide wires.

motorised blind FE

Motorised blind FE

Through an integrated 24 V electric motor the hanging of the blind is moved to the desired position.

It is operated by means of remote control or switch.

chain operated

Chain

Through the operation of the chain the hanging of the blind is moved to the desired position.

New
Colours
| Rail + Plastic Components

Rail colour

Plastic colour

20 white matt
(powder-coated)

20 white

02 silver
(anodised)

03 grey

05 black-brown matt
(powder-coated)

05 black-brown

26 bronze
(anodised)

26 bronze

24 anthracite matt
(powder-coated)

24 anthracite

09 silver brushed
(brushed and anodised)
VS 2 only (extra charge)

03 grey

03 grey matt
(powder-coated)
VS 2 Slide, VS 2 Slide Comfort and DF
Comfort only

03 grey

New
Honeycomb Fabrics Range
| 190 Designer Colour + Patterns

Australia's most comprehensive collection of Honeycomb Cellular Blind fabrics.

Our stunning new collection of Honeycomb fabrics offers  a solution for ever Residential or Commercial application. Architects, Designers & Decorators can select from the 190 on-trend fabrics to compliment all architectural & design styles.

The honeycomb & cellular construction of our Simply Cell fabrics provides very significant thermal and energy cost saving benefits.

Simply Cell | Honeycomb Cellular Range

simply cell fabrics range
simply cell fabrics brochure

Downloads

Blinds by Peter Meyer brochure download

Product & Technical Brochure

Simply Cell Honeycomb Blind System brochure

Honeycomb Cellular Blind System

Simply Cell technical brochure

Simply Cell technical brochure
