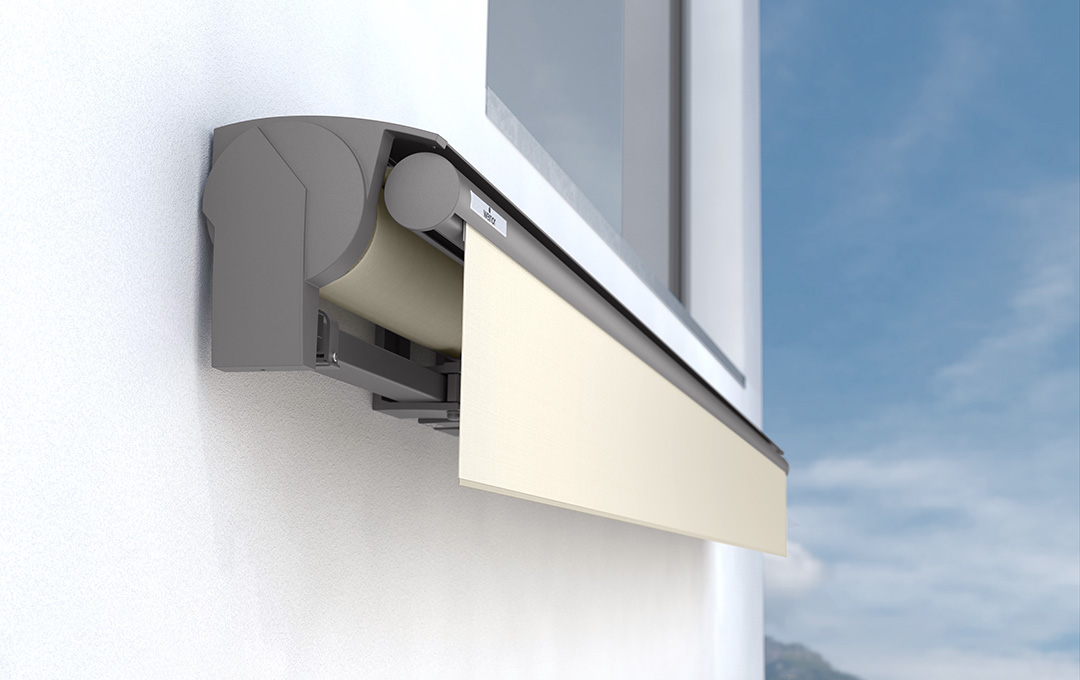

New Release | Topas II | Open Awning | Affordable Excellence
The Topas II is Weinor’s newly upgraded open awning solution, engineered for flexibility across a wide range of mounting scenarios. Available with or without a protective roof profile, it’s ideal for installations where a cassette system isn’t required, but structural durability and wind stability still matter. With streamlined hardware, durable construction, and an expanded range of configuration options, the Weinor Topas II Open Cassette Awning offers professional-grade performance for projects requiring a simple, cost-effective, and highly adaptable shading system.

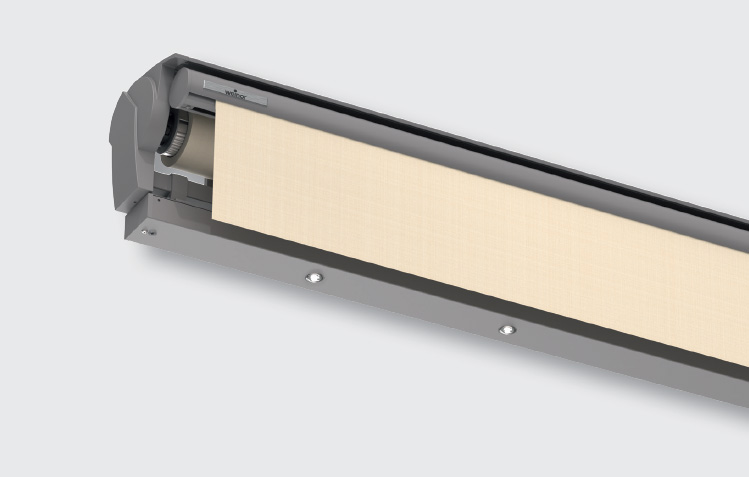

Intergrated LED Lighting
Energy-efficient LED light bar with 30,000-hour lifespan, precision lenses, and replaceable components for easy servicing.

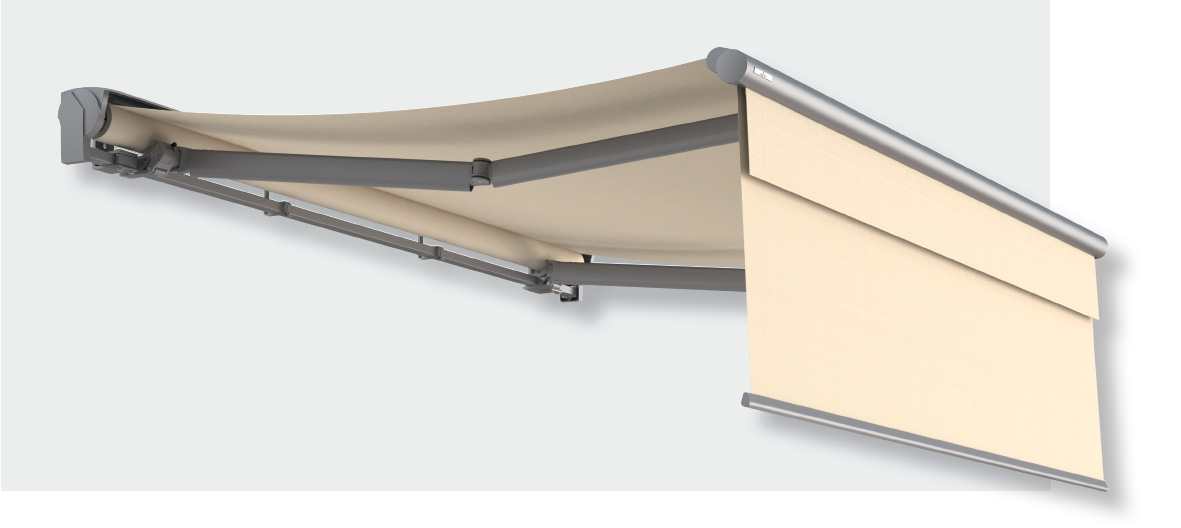

Valance Plus Protection
Vertical drop up to 2100mm for low sun and privacy protection, guided by the Opti-Flow-System® for smooth, secure operation.
New Release
Topas II | Technology
| Topas ll Versions | Technology | Topas ll | With Roof | Topas ll | Without Roof |
|---|---|---|
| Max Width | 1 Section / 2 Section w. Jockey Cover | 7,000mm / 12,000mm | 7,000mm / 12,000mm |
| Max Projection | 4,000mm | 4,000mm |
| Side Dimensions (W x H) incl. Standard Bracket | 215mm x 215mm | 215mm x 210mm |
| Coupled Units |  | |
| Motor Drive |  Standard | Standard |
| Adjusting Awning Pitch | 5° to 40° | 5° to 40° |
| Installation Alternatives | Walls, Roofs + Rafters | Walls, Roofs + Rafters |
| LongLife Arm | Standard | Standard |
| Valance Plus Option | ||
|---|---|---|
| Max Width | 5,500mm / 6,000mm | 5,500mm / 6,000mm |
| Max. Awning Projection | 3,500mm / 3,000mm | 3,500mm / 3,000mm |
| Side Dimensions (W x H) incl.Standard Bracket | 265 mm x 215 mm | 265 mm x 210 mm |
| Gear Drive | | |
| Motor Drive | Standard | Standard |
| Adjusting Awning Pitch | 10° to 20° | 10° to 20° |
| Valance Plus Projection (Height) | 1,000mm, 1500mm, 2100mm | 1,000mm, 1500mm, 2100mm |
| Accessories | ||
|---|---|---|
| Tempura/Tempura Quadra Heating System | | |
| LED Design LghtBar for Topas II | | |
| Somfy Eolis 3D Motion Sensor | | |
| Controls | ||
|---|---|---|
| Somfy Remote Contol | | |
| No Remote Control | | |
| Weather Sensors | ||
|---|---|---|
| Sun / Wind Sensor | | |
| Sun / Wind Sensor | Solar Operated | | |
| Sun / Wind / Rain Sensor | | |
| Quality | ||
|---|---|---|
| Tested Up To | Wind Resistance Class 1 According to DIN 13561 (Wind Strength 5 Beaufort Scale) | |
Standard Optional

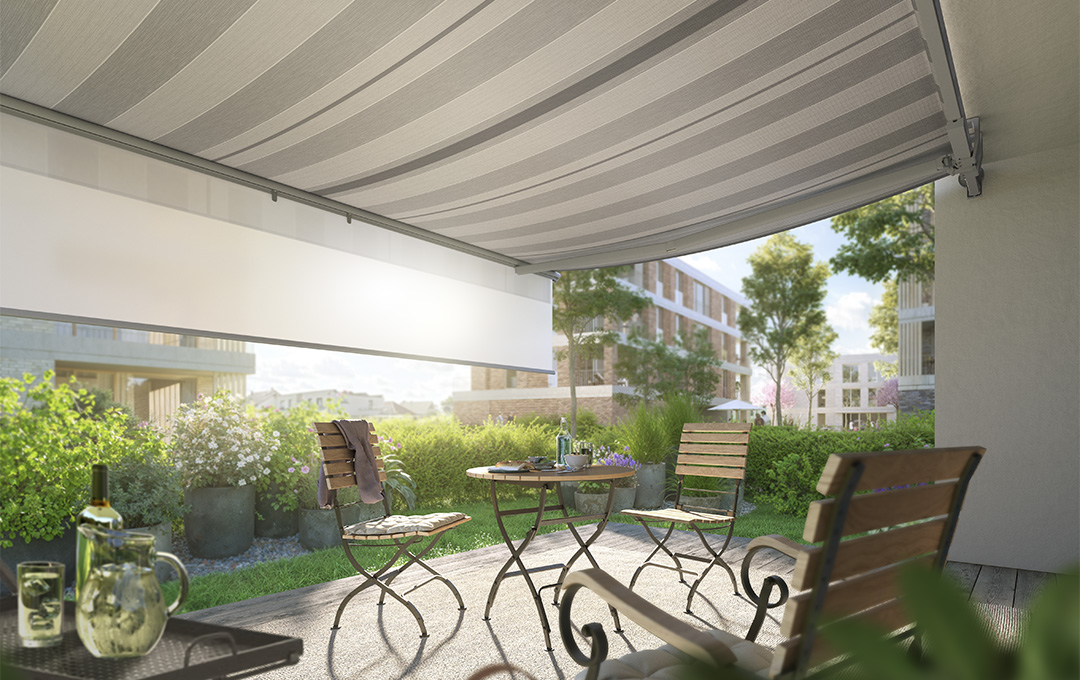

Topas II + Topas II LED | Gallery
Explore the versatility of the Topas II through real installations — from wide-span patios to sleek, roofless setups. Designed to adapt, built to perform.

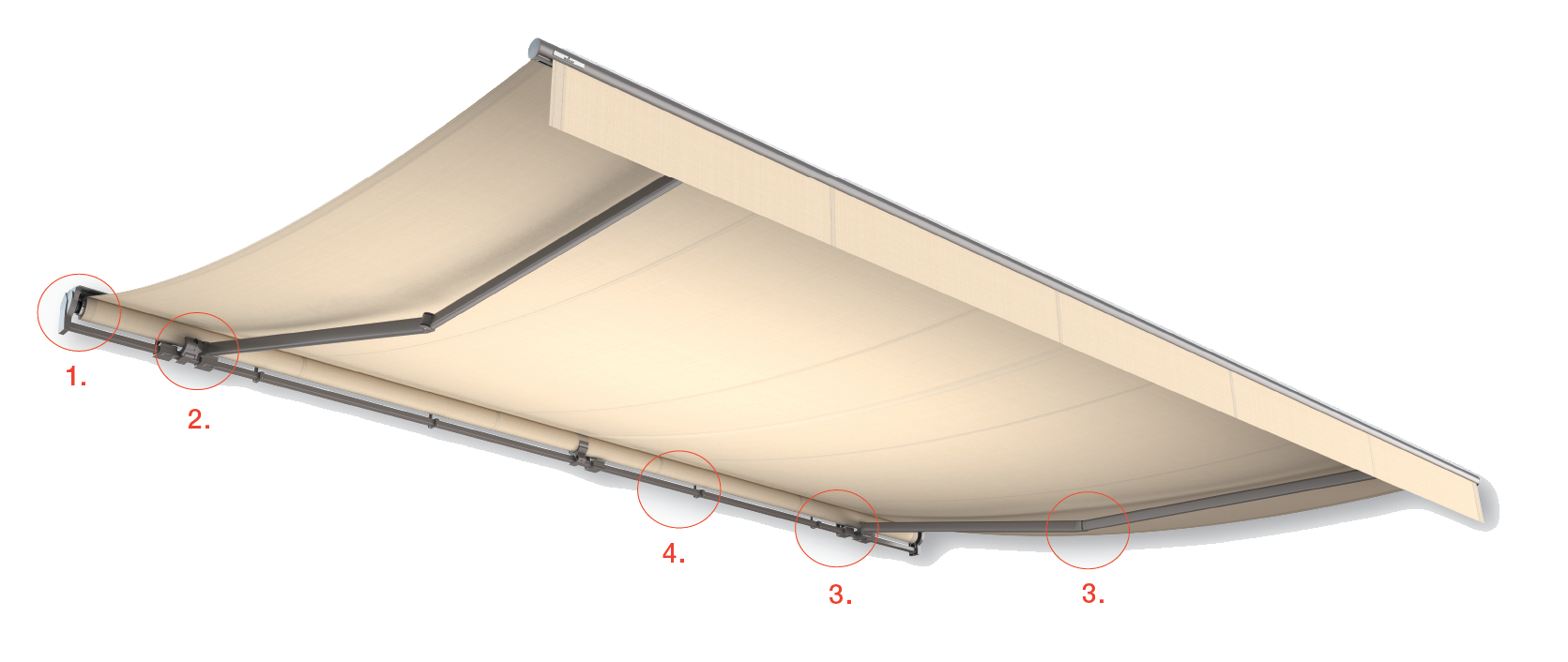

Topas ll + Topas ll LED | Highlights

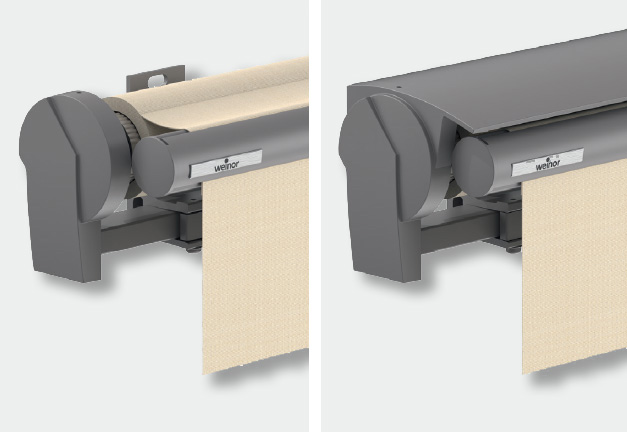

1. | Versions.

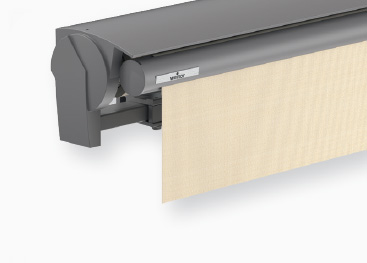

Topas II | With Roof

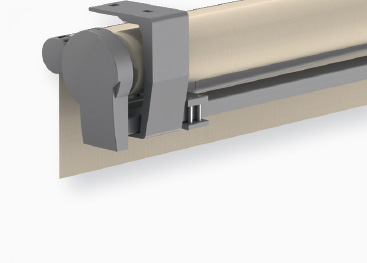

Topas II | Without Roof
2. | Mounting.

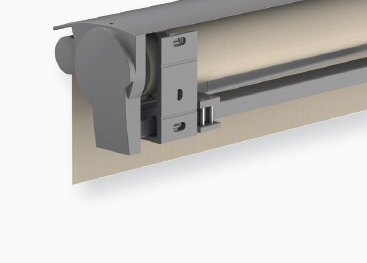

Wall Installation
Ceiling Installation

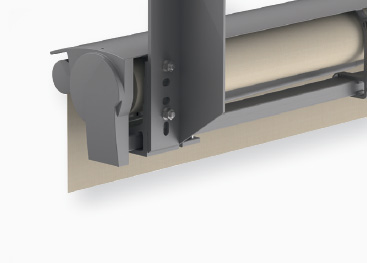

Rafter Installation
Wall Connection +
Plus Top Profile [ Option ]
3. | Innovation.

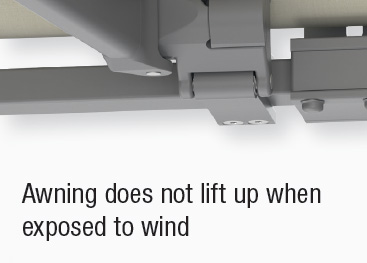

Windlock Safety Device
Weinor Longlife Arm
4. | Options.

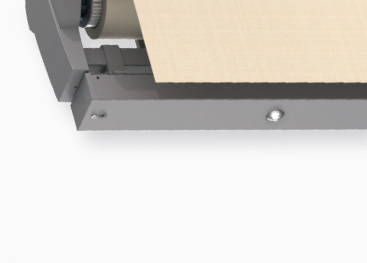

LED Design Light Bar

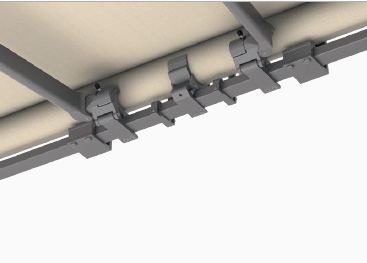

Joined Units | Roller Support

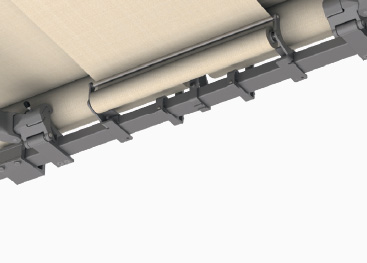

Joined Units | Jockey Cover
Topas II + Topas II LED | Benefits
Reliable Shade With Flexible Options
Designed with the latest Weinor technology, the Topas II Open Awning combines dependable performance with impressive affordability. Suitable for installations with or without a roof, this open awning handles large widths with ease and offers proven wind resistance. A wide fabric range, optional metal valance, and sleek design ensure the Topas II meets both functional and aesthetic demands across residential and commercial projects.
Seamless LED Lighting With Simple Installation
The Weinor Topas II can be enhanced with an optional LED light bar, designed for clean installation directly to the carrier bar. Featuring precision glass lenses, the LEDs deliver soft, atmospheric lighting while remaining highly energy-efficient. Built to last with a 30,000-hour lifespan, the system also allows for simple servicing — individual LED modules and electronic parts can be replaced without removing the Awning.

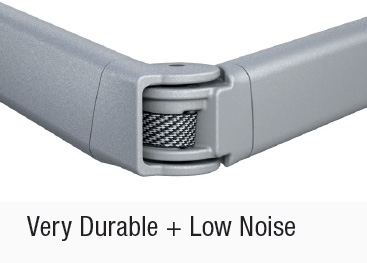

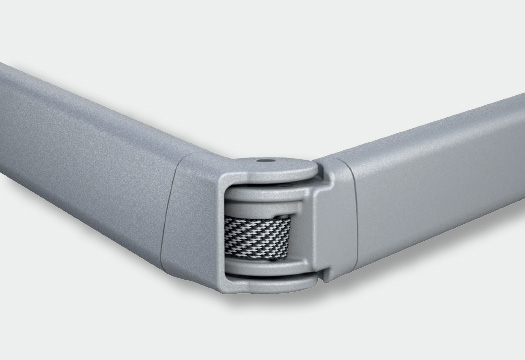

LongLife Arm | Built for Strength + Silence
The Weinor LongLife arm is designed for longevity, using a reinforced high-tech belt system tested to over 100,000 cycles. It delivers impressively quiet operation with no need for ongoing maintenance. With drop-forged aluminium in the joint, it offers exceptional durability while keeping the overall weight low for smoother performance.

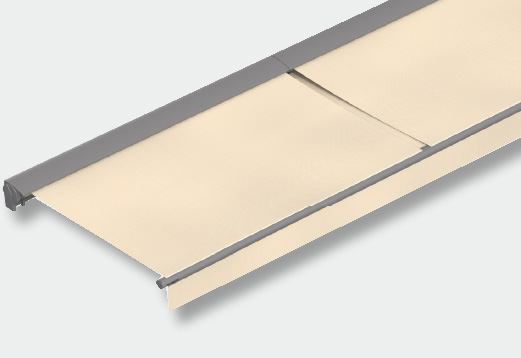

Multi-Section Systems for Large Spans
Topas II can be supplied as a multi-section unit for shading extra-wide spaces, with configurations available up to 12 metres. Options include a jockey cover with two-piece fabric or a roller support with cradle and continuous one-piece fabric for a cleaner finish. This flexible design suits both residential and commercial projects.
Valance Plus | Discreet Privacy + Low Sun Control
Elegantly built into the front profile, the optional Valance Plus provides vertical sun and privacy protection when the sun is low. It extends up to 2100mm and uses Weinor’s patented Opti-Flow-System® to ensure the fabric remains taut, glides smoothly, and retracts cleanly every time.
Topas II + Topas II LED | Showcase

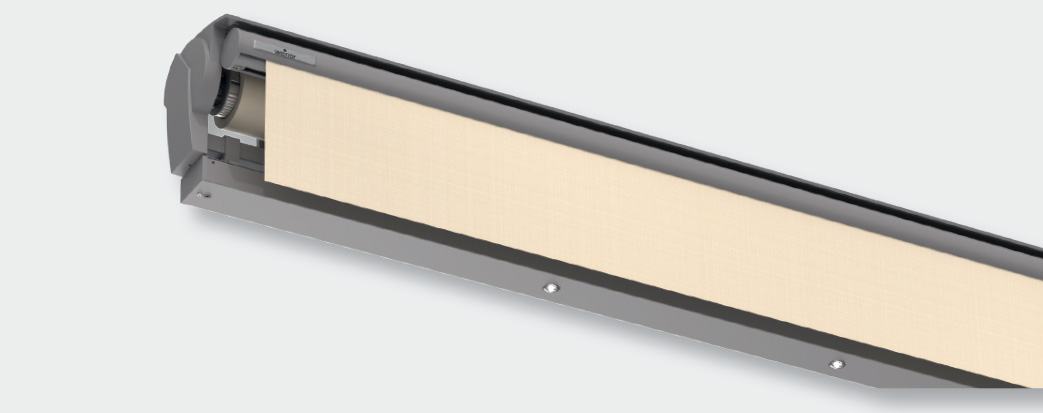

Topas II | LED
The Topas II LED features an integrated LED light bar mounted directly to the carrier bar, offering warm, atmospheric lighting via precision-engineered glass lenses. The system is energy-efficient, delivers up to 30,000 hours of use, and remains active even when the awning is retracted. Designed with serviceability in mind, individual LED modules can be replaced without removing the awning
LED lighting – 30,000 hours of lighting with lowest energy consumption

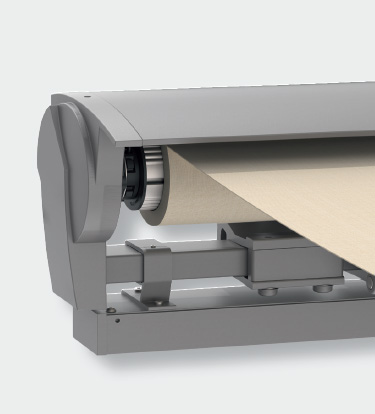

Light bar bracket

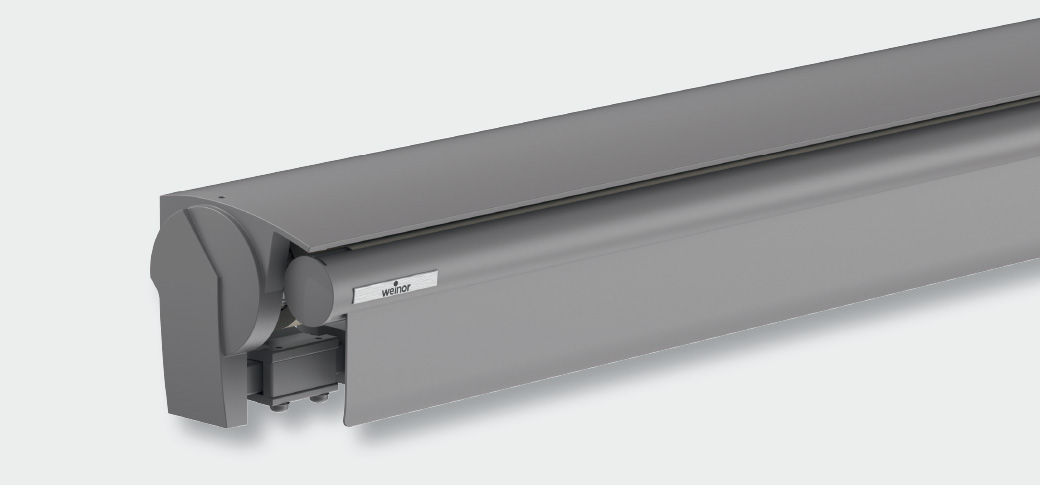

Topas II | Metal Valance (optional)
Unlike traditional fabric valances, the optional metal valance offers greater durability and improved resistance to wind, rain, and everyday wear. It conceals the front profile’s moving parts, protecting internal mechanisms while delivering a cleaner, more architectural finish. Its rigid structure also supports more uniform closing across the full width of the awning. Mounted using two screws at each end of the front profile, it is easy to install and maintain.
Note: The metal valance is not compatible with the Valance Plus version.

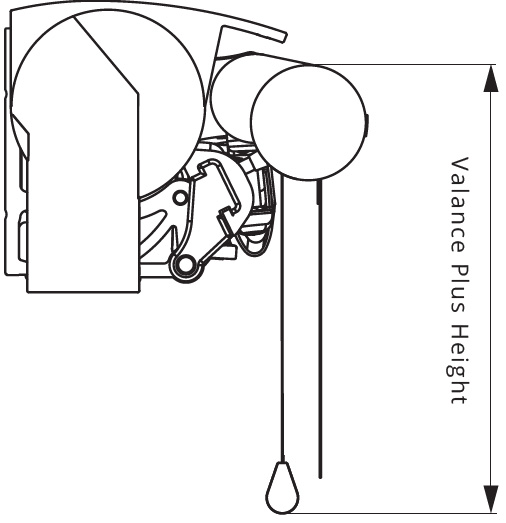

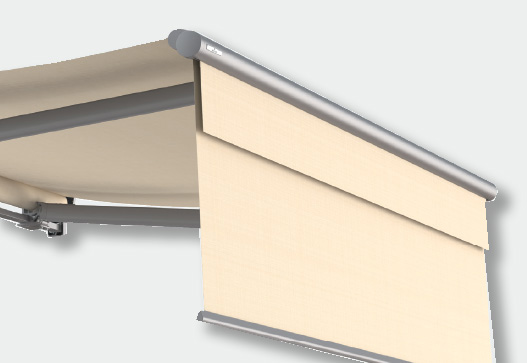

Topas II | Valance Plus
Topas II Valance Plus includes a seamlessly integrated front drop that extends up to 2100mm for low-angle sun and privacy protection. The valance is steplessly adjustable and suited to awnings with a pitch between 10°–20°. It is available only on single-section motorised awnings and must be specified at the time of order, as it cannot be retrofitted.

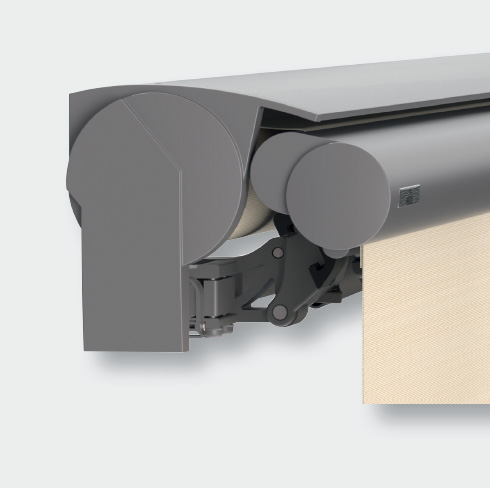

Motorised

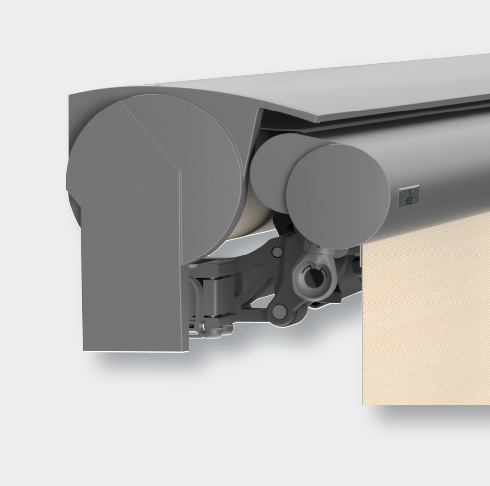

With Crank

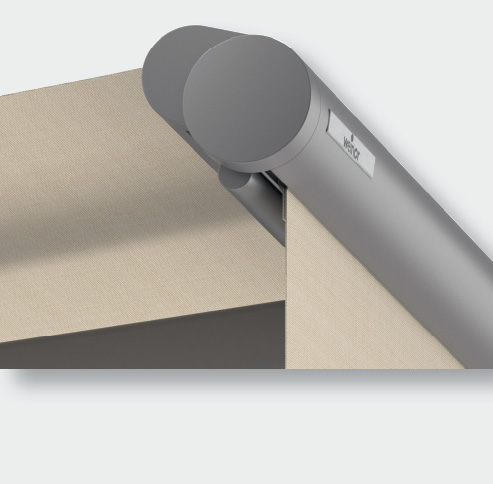

Valance Plus Retracted

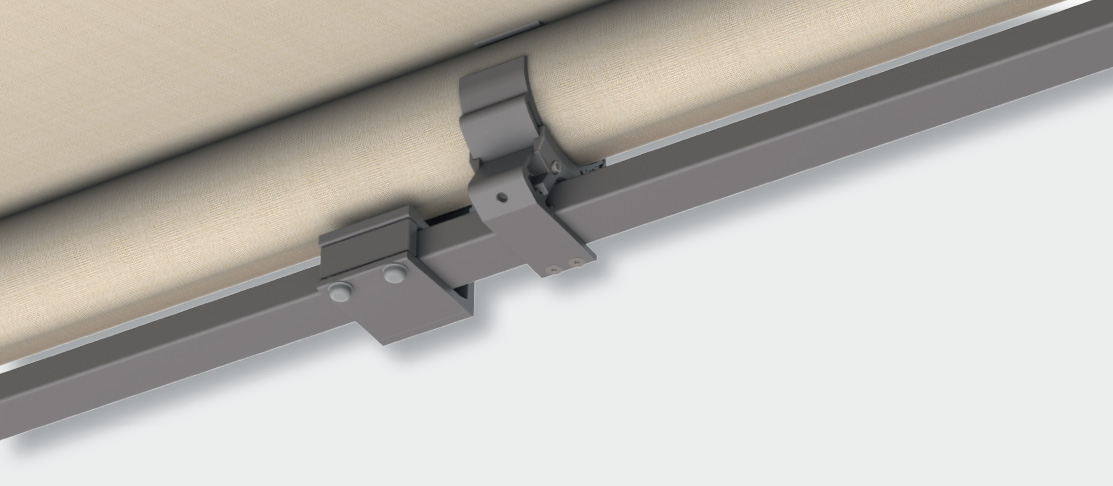

Topas II + Topas II LED | Roller Support

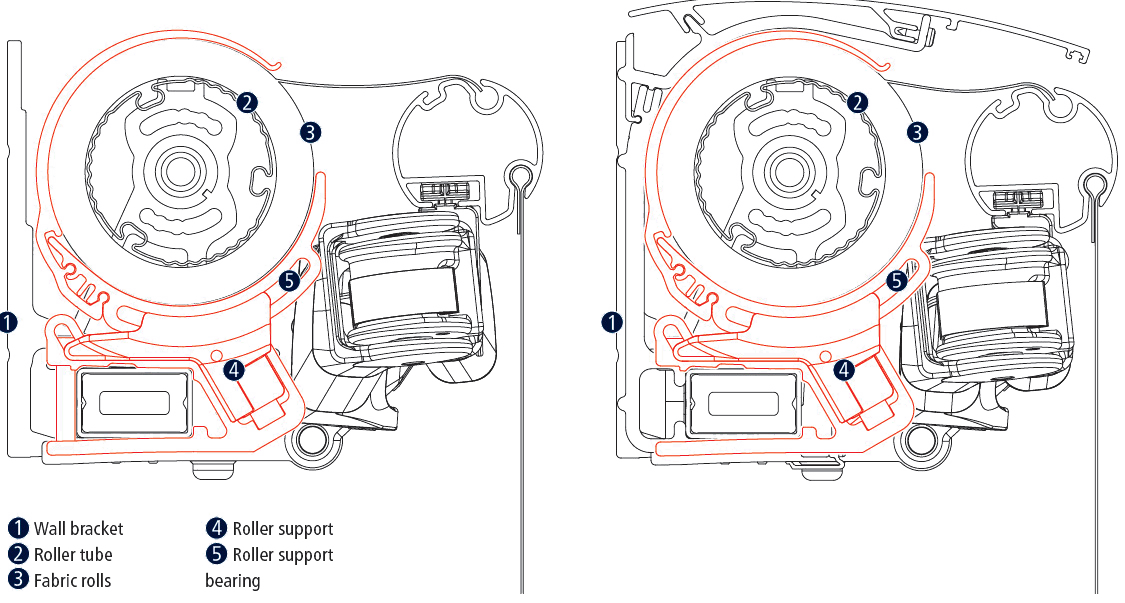

Wall bracket and roller support
Topas II: Wall installation with a wall bracket and roller support
Topas II + Topas II LED | Manual Gear Drive | Optional

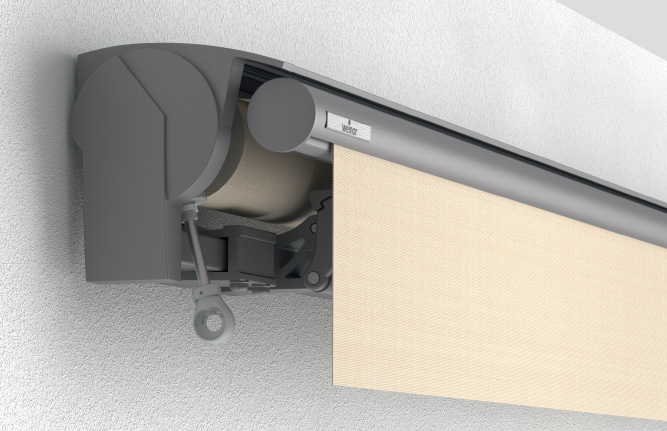

Wall | Installation
The Weinor Topas II is available with a manual gear drive for projects where electrical connection is difficult or unnecessary. This option is suitable for widths up to 5500mm with a maximum projection of 3000mm and is ideal for low-use installations or where simplicity is preferred.

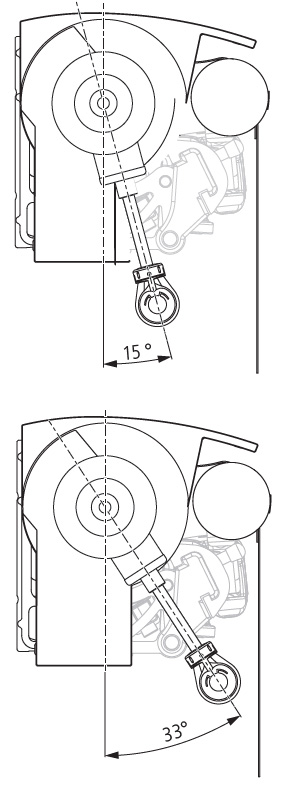

Standard Crank Outlet | Wall
Supplied with a standard wall-mounted crank outlet for manual operation where required.

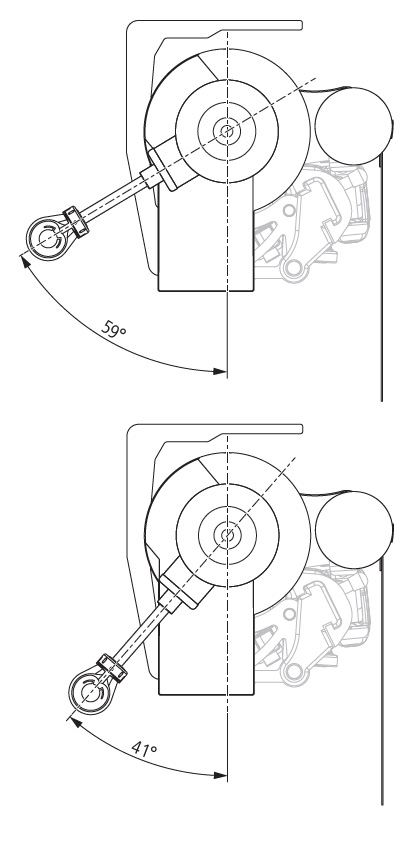

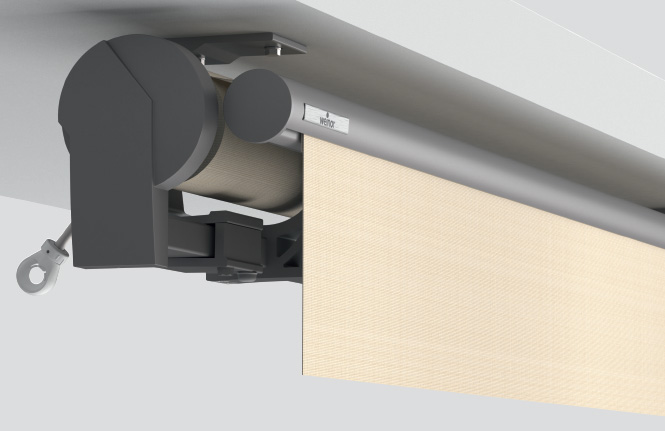

Ceiling + Balcony| Installation
The Weinor Topas II features a universal bevel gear system with an externally adjustable end stop. It’s tested to DIN EN 14203 standards and includes a freewheel mechanism when fully extended, allowing for smooth operation and flexible mounting under balconies or ceilings.
Crank Outlet | Ceiling/ Balcony
Alternative crank outlet available for ceiling or balcony-mounted installations.

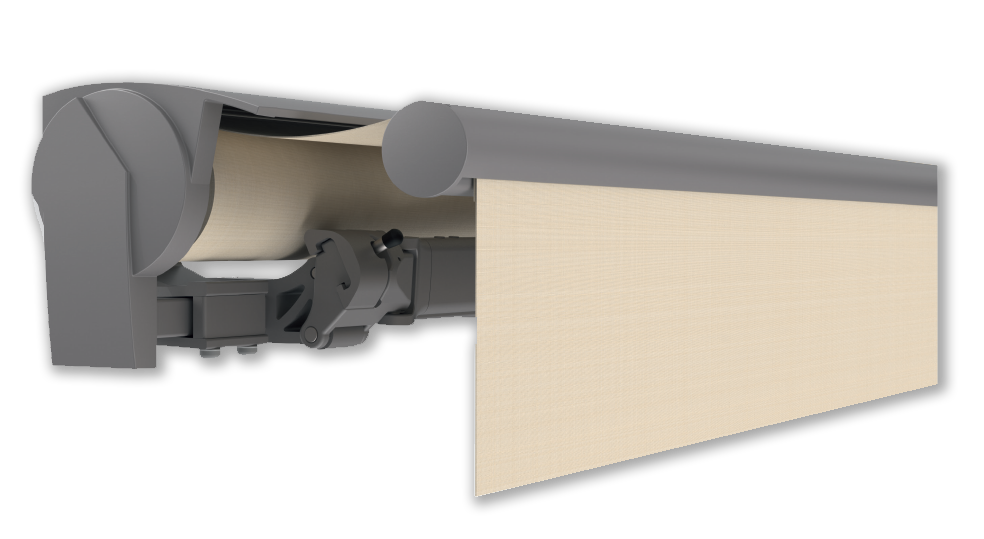

Topas II + Topas II LED | Wall Installation
Wall Mounting on Pressure-Resistant Surfaces
A minimum number of wall brackets is required to ensure the Awning functions correctly, regardless of the mounting surface. Bracket selection should follow the Weinor bracket overview and account for maximum extraction forces based on the chosen fixings.

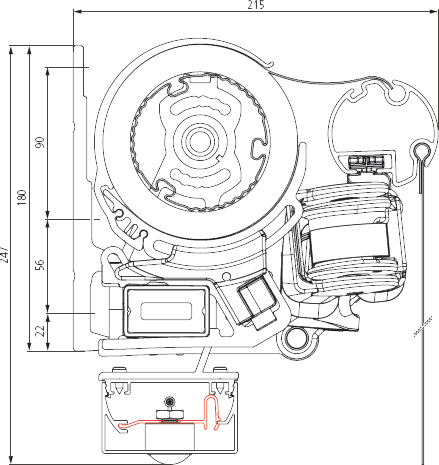

LED design light bar for Topas II (without a roof)

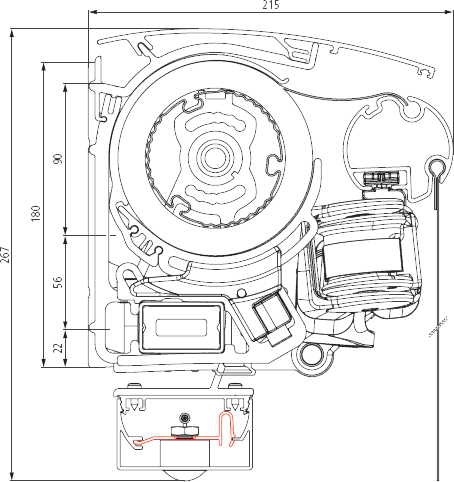

LED design light bar for Topas II (with a roof)

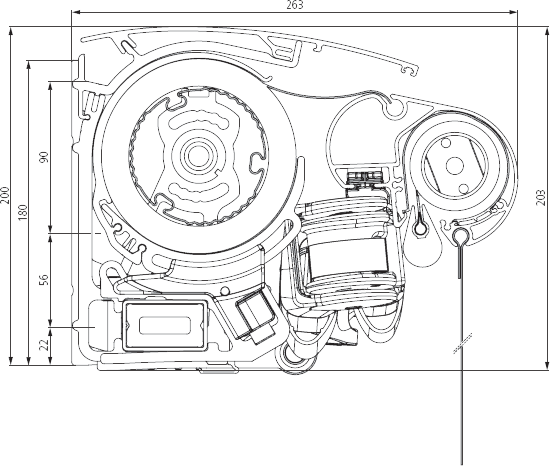

Topas II with a roof and Valance Plus motor

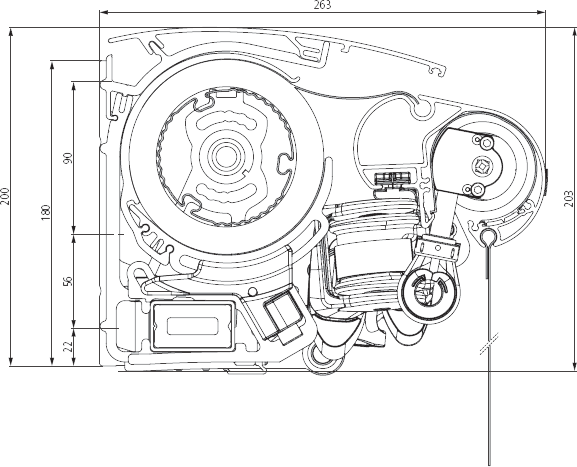

Topas II with a roof and Valance Plus crank drive
Topas II + Topas II LED | Wall Mounting

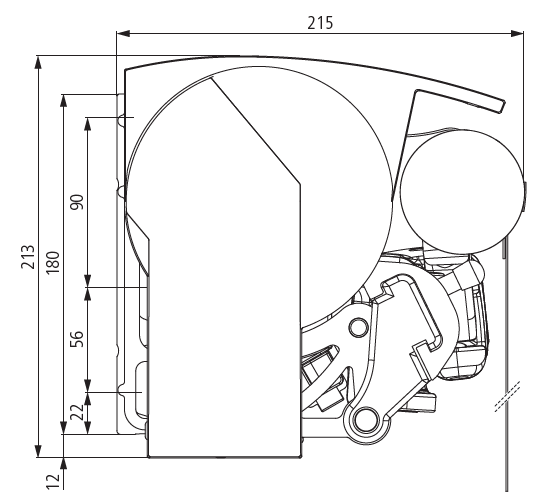

Wall bracket (Topas II with a roof)

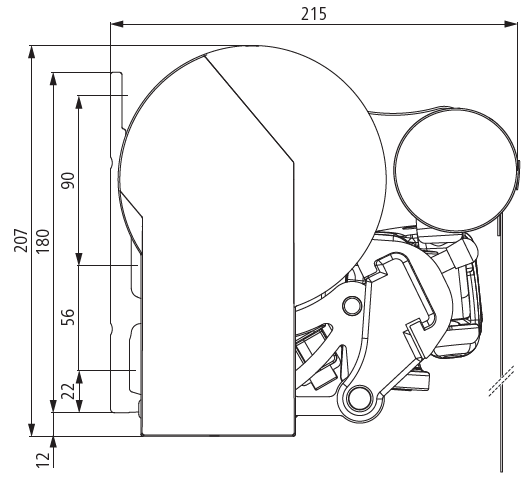

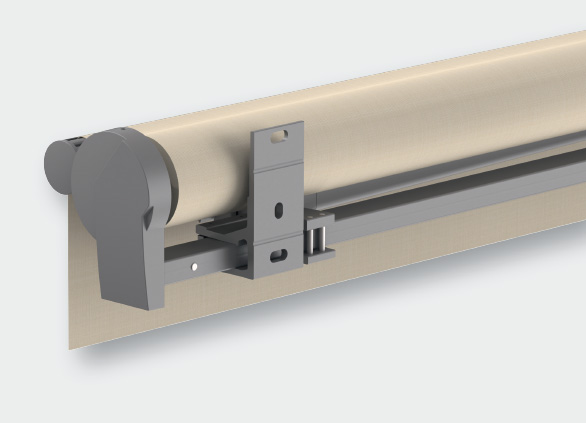

Wall bracket (Topas II without a roof)

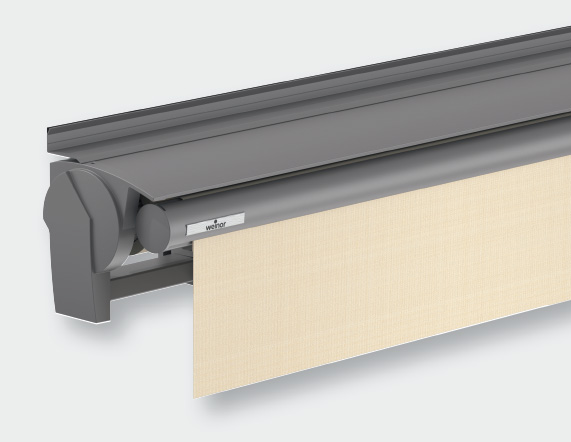

Topas ll with Roof + Top Profile

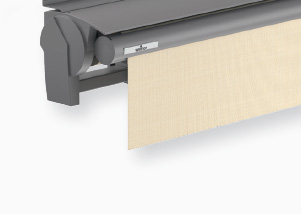

Wall connection with a top profile (optional)

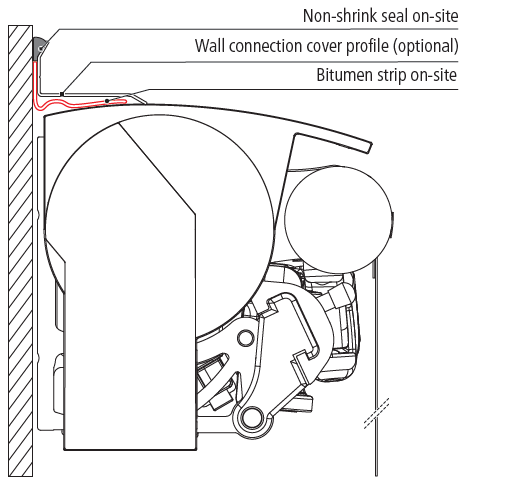

Wall connection with top profile (cross-section)

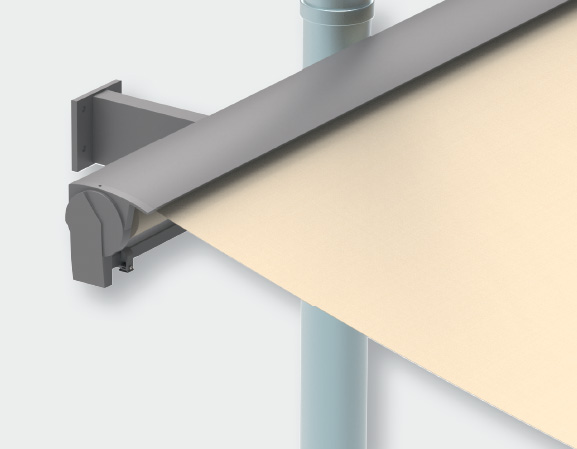

Topas II + Topas II LED | Stand Off Brackets Installation
Topas ll with Roof + Top Profile

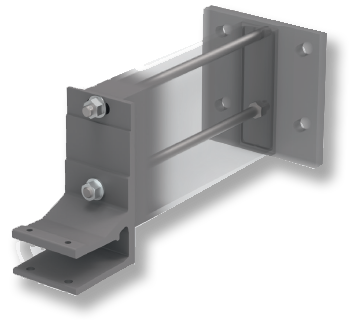

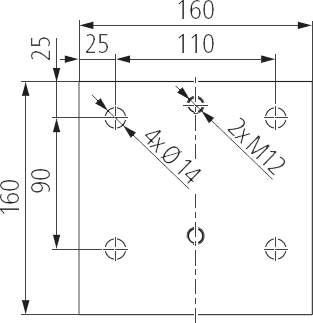

Special Attachments

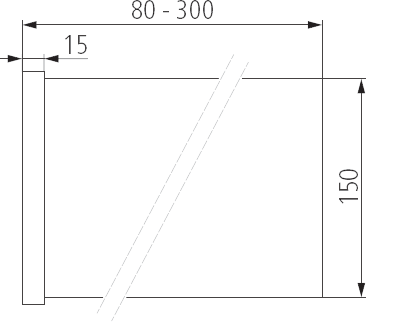

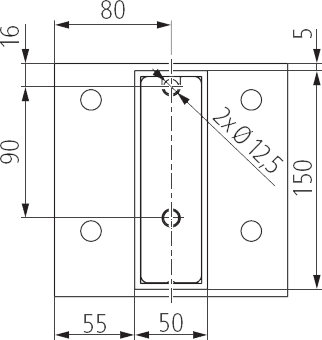

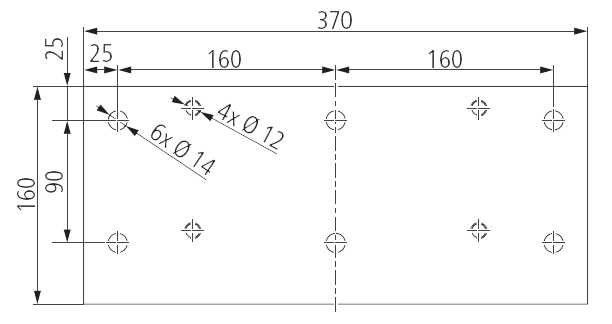

The stand-off bracket allows the Topas II to be installed in front of obstructions such as downpipes or external fixtures. It can bridge gaps between 80 and 300mm and may be trimmed on site if needed — though for a more durable, powder-coated finish with no raw edges, Weinor recommends ordering the bracket to the exact required length.

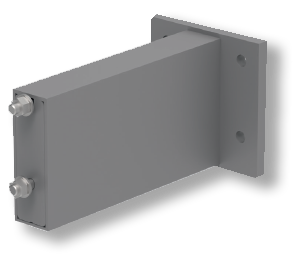

Stand off bracket for 85mm wall bracket
Stand off bracket with a 85mm wall bracket

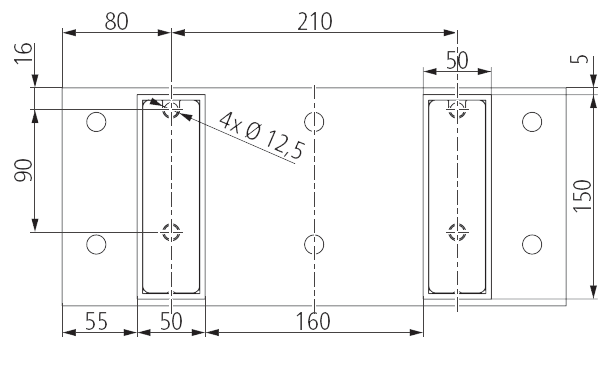

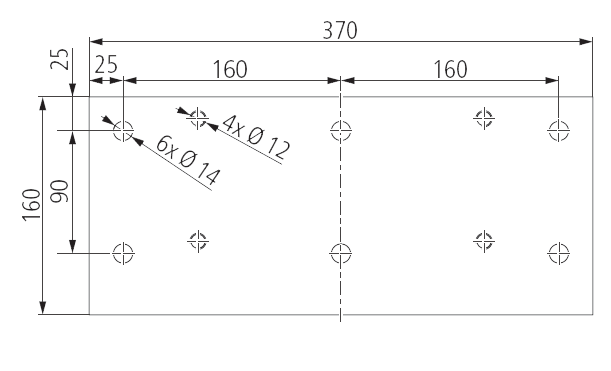

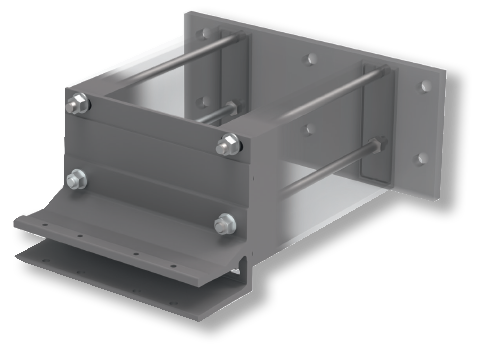

Stand off bracket for two 85mm wall brackets or one 260mm wall bracket
Stand off bracket with a 260mm wall bracket

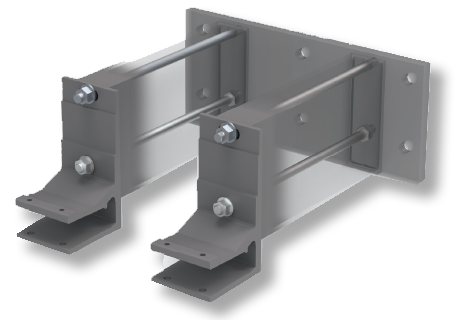

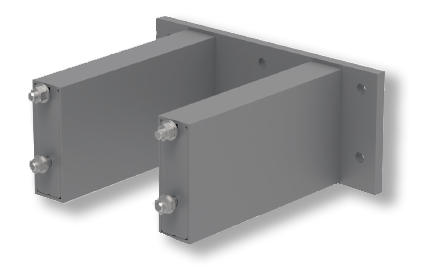

Stand off bracket with two 85mm wall brackets

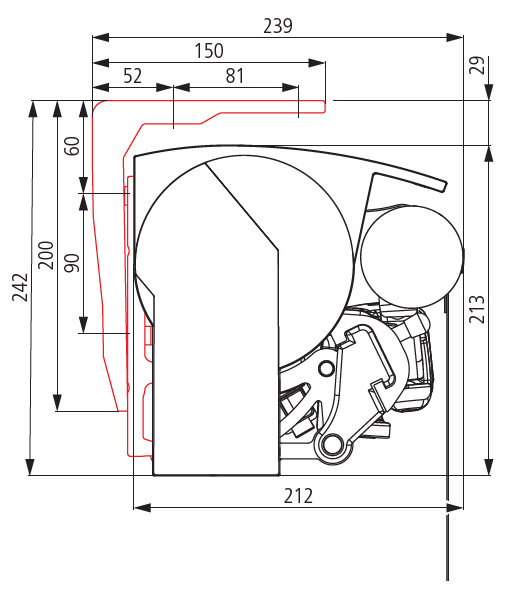

Topas II + Topas II LED | Ceiling Installation
Topas II without a roof

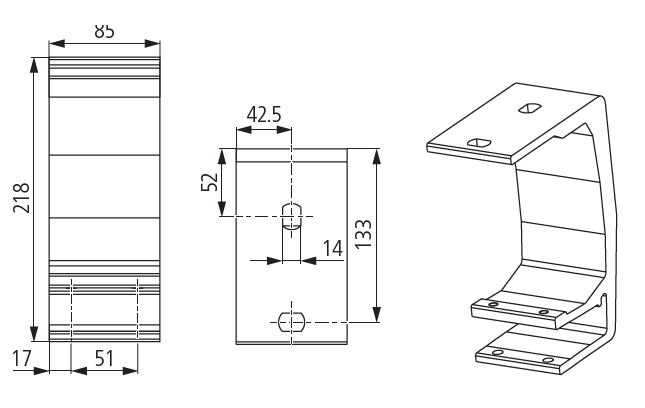

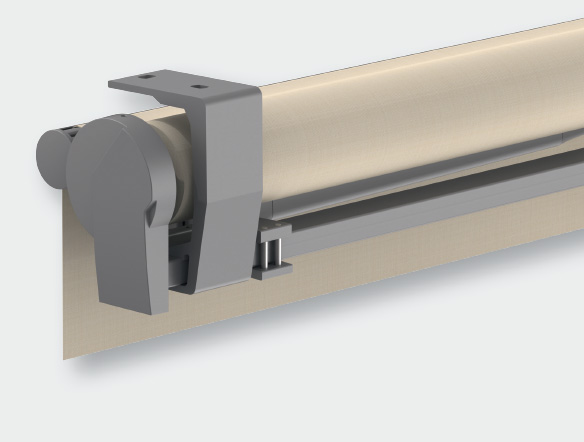

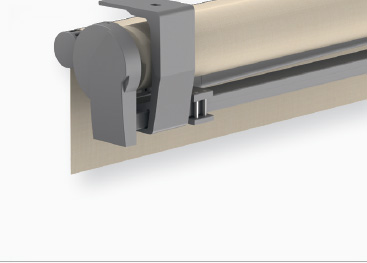

Compact ceiling bracket
(Topas II without a roof)
Compact ceiling bracket

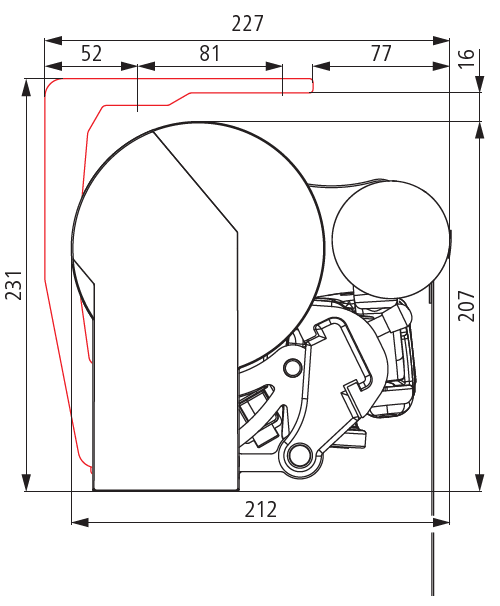

Topas II with a roof

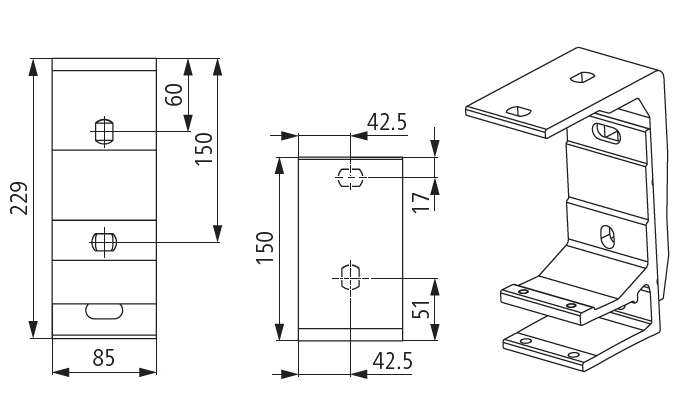

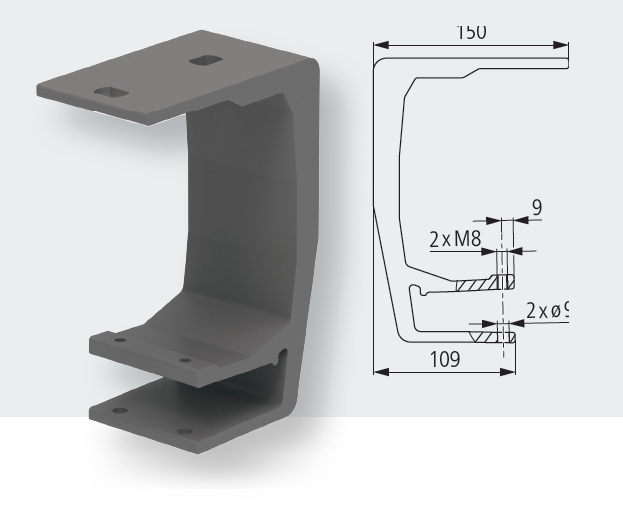

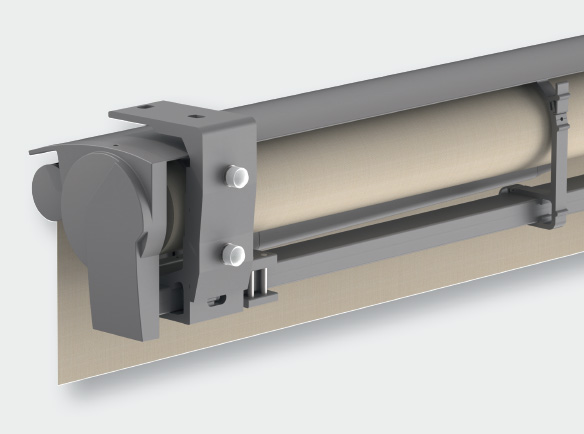

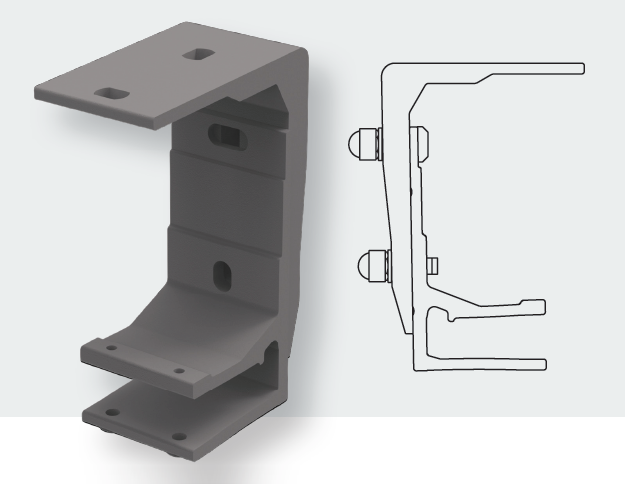

Ceiling bracket (2-part)
(Topas II with a roof)
Ceiling bracket (2-part)
Downloads
Download our brochures containing all product details and and full technical specifications.
Full Ranges Brochure

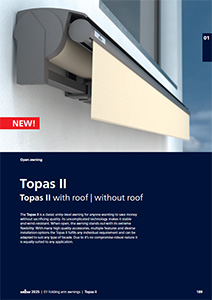

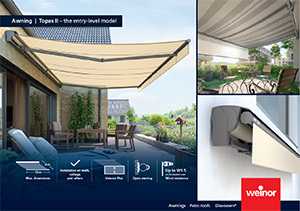

Topas II Fact Sheet
Technical Brochure
Topas II
