Somfy | Glydea® Ultra

State of the art Motorised Curtain technology.

Home > Interior > Curtain Tracks > Somfy Glydea® Ultra

Glydea® Ultra. Blissfully quiet & smooth.

Somfy’s newest innovation to motorised curtains, the Glydea® Ultra is one of the quietest curtain motorisation solutions on the market. Glydea® Ultra is discreet with light, fluid movement and a strong traversing capacity up to 60kg. WireFree Irismo offers battery power and faster installation.

Perfect for residential and commercial projects where creating the right ambience via a simple touch of the button is important.

somfy
quiet motorised curtain
designed for silence

Designed for silence.
Silent mode and
silent accessories.

designed for silence

Softly, softly.
Soft start and soft
stop on RTS and
DCT motors.

designed for silence

Touch motion.
Simply pull on
curtain to start
into motion.

designed for silence

Adjustable speed.
5 speeds available.
to assist control of
operation sound.

designed for silence

WireFree.
For faster installation.
Discreet solution.
No visible wiring.

designed for silence

Multiple technologies.
RTS, DCT, WT & bidirectional tech. w. RS485 module. (to insert in RTS or DCT vers.).

Glydea® Ultra | 35e

Suitable for Light to Medium Curtains

Radio Technology Somfy® (RTS )
Dry Contact Technology (DCT)
Wired Technology (WT)
Curtains Maximum Weight
35kg
Maximum Track Length
15m Straight Track
Tracks
Straight + Bent ( Min. bend radius 300mm)
Voltage
230V 50HZ
Speed (cm/s) @ Sound (dBA)
20 cm/s @ 45.2 dBA
17.5 cm/s @ 43.4 dBA
15 cm/s (default) @ 39.7 dBA
12.5 cm/s @ 37.3 dBA
7.5 cm/s (silent mode) @ 29.8 dBA
Note: Measurement Drawings Below

glydea diagram

Glydea® Ultra | Showcase

somfy

Glydea® Ultra | 60e

Suitable for Heavy Curtains

Radio Technology Somfy® (RTS )
Dry Contact Technology (DCT)
Wired Technology (WT)
Curtains Maximum Weight
60kg
Maximum Track Length
15m Straight Track
Tracks
Straight + Bent ( Min. bend radius 300mm)
Voltage
230V 50HZ
Speed (cm/s) @ Sound (dBA)
20 cm/s @ 45.2 dBA
17.5 cm/s @ 43.4 dBA
15 cm/s (default) @ 39.7 dBA
12.5 cm/s @ 37.3 dBA
7.5 cm/s (silent mode) @ 29.8 dBA
Note: Measurement Drawings Below

glydea diagram
glydea ultra quiet curtains

Glydea® Ultra | Features | 35e + 60e

Ultra Quiet. The innovative Glydea Ultra delivers superior acoustic performance with less than 30dBA, making it one of the quietest solutions on the market. Absorbing both vibration and noise throughout the system and within the motor, the Somfy Glydea Ultra is quite exceptional in delivering ultra quiet movement.

Starts & Stops. Soft start and soft stop on RTS and DCT motors.

Multiple Technologies. RTS, DCT, WT and bidirectional technology with RS485 module. (to insert in RTS or DCT version).

Speed. Adjustable speed – 5 speeds available.

Elegance. New design for the best aesthetic of the complete solution.

Reliable, robust and discreet. Premium solution for residential and commercial projects.

Ultra Strong. Somfy’s unrelenting commitment to strength and performance has allowed Glydea Ultra to offer a strong traversing
capacity of up to 60kg while still discreet movement that is both light and fluid. Curtain weight up to 60kg.

Adaptable & powerful. The Glydea Ultra is compatible with many different technologies, making it a suitable option for all projects from small residential to large commercial. For those looking to integrate a smart home or office and use voice control, the Somfy Glydea delivers with the Somfy Connexoon™ Window RTS smart device app and integration with Google and Alexa.

Flexible installation. Available with inline connector for ease of programming. Motor can fit either end of the track.
Also able to use dual motors either end for heavier curtain applications.

Comfort. One of the quietest solutions on the market. Open and close smoothly to allow the right amount of light to create a perfect ambiance without disturbing your peace and quiet.

somfy

Irismo 45 | WireFree RTS

WireFree, plug-and-play curtain motorisation

Applications
Curtains
Curtains Maximum Weight
45kg
Maximum Track Length
15m Straight Track
Tracks
Straight + Bent ( Min. bend radius 300mm)
Technology
RTS
Radio Frequency
433.42 MHz
Nominal Voltage / Frequency
Battery Pack
Voltage / Supply
24V DC
Charging Time
< 6 hours
Index Protection Rating
IP30
Electric Insulation
Class 1
Temperature Working range
0ºC to +60ºC
End-Limit Versions Avail.
RTS
Norminal Torque (Nm)
0.8Nm
Speed (cm/s) @ Sound (dBA)
20cm/s @ 45 dBA
17.5cm/s @ 43 dBA
15cm/s @ 42 dBA
12 cm/s @ 39 dBA
Adjustable Limits
Yes
Note: Measurement Drawings Below

irismo diagram
irismo motor
irismo features

Irismo 45 | WireFree | Features

Easy use and maintenance. Rechargeable battery (only recharge once per year) + Low battery LED indicator

Elegance. Discreet design. Complete solution. + No more visible wiring + Smooth motion with adjustable speed

Smart and Simple. Enjoy your smart home by controlling your curtains with Connexoon Window RTS and voice control

Protect your curtain. Soft stop and soft start to protect the fabric

Discreet integration. Quick and clean installation with no damage to walls

Simple, effortless and comfort. Move your curtains effortlessly

Save energy. Long life battery lasting 9 months

irismo features diagram
somfy

Glydea Ultra | In Motion

Track Type + Motor Range | Selection

track type A
track A wirefree 45
track A 35
track A 60
track A tandem 60
track type B
track B wirefree 45
track B 35
track B 60
track B tandem 60
track type C
track C wirefree 45
track C 35
track C 60
track C tandem 60
track type D
track D wirefree 45
track D 35
track D 60
track D tandem 60
track type E
track E wirefree 45
track E 35
track E 60
track E tandem 60
track type F
track F wirefree 45
track F 35
track F 60
track F tandem 60
track type G
track G wirefree 45
track G 35
track G 60
track G tandem 60
track type H
track H wirefree 45
track H 35
track H 60
track H tandem 60

One Way Opening

one way opening

Central Opening

central opening
ultra quite motorised curtains

Glydea Ultra® | 35e + 60e | Interface Drawings

glydea ultra interface drawings

Irismo™| WireFree | Interface Drawings

irismo wirefree interface drawings

Single Track

single track

Double Track

double track

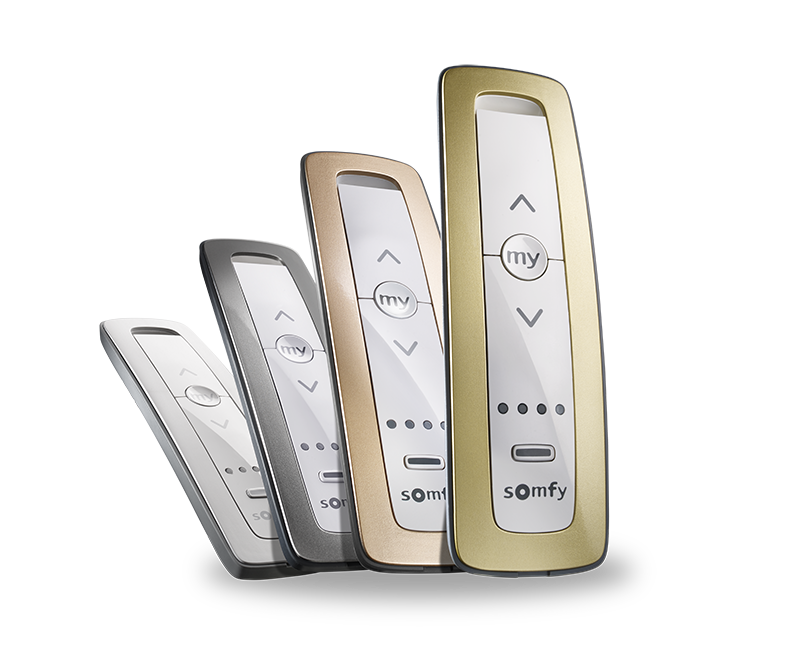

somfy controllers
somfy

Controllers | Remotes + Wall Switches

Remotes

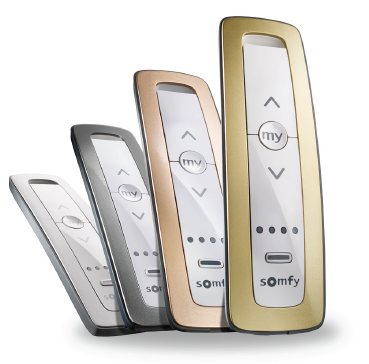

situo remotes

Situo RTS Remote Controls
Control your blinds with the touch of a button .Simple and intuitive remotes to control multiple applications

Wall Switches

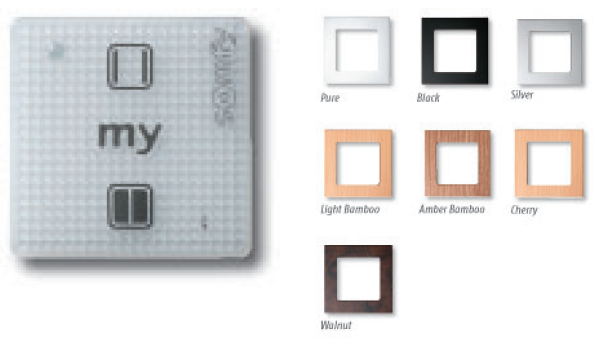

smoove wall switches

Smoove 1 RTS Wall Switch
Wireless wall-mounted RTS range. Sensitive technology that interacts intuitively with all house openings.

Controllers | Smartphone + Voice Control

Smartphone Control

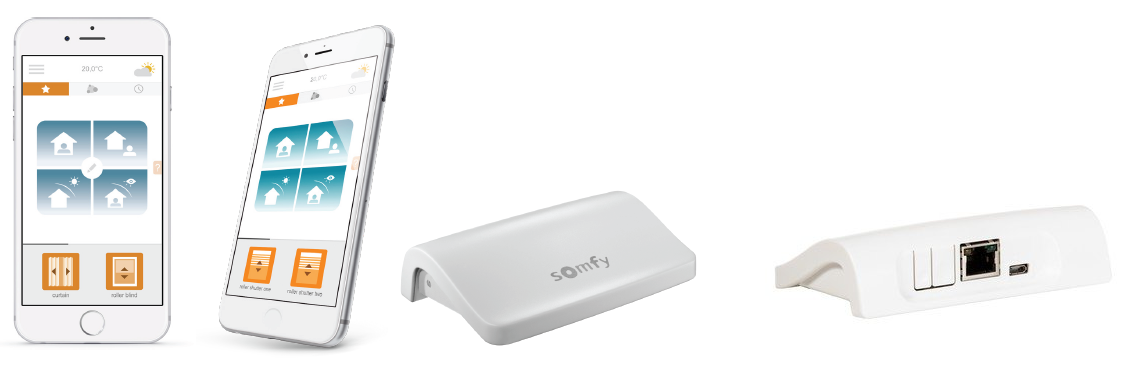

conexoon windows RTS

Connexoon Window RTS
Simplify your life and turn your house into a smart home with Somfy Connexoon Window RTS.
Control and program your blinds via a smartphone or voice control using Google Assistant or Amazon Alexa.

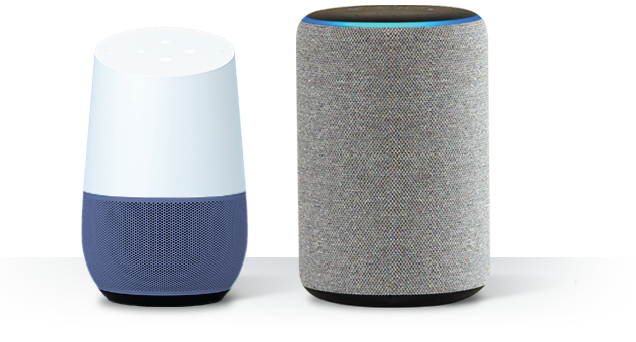

voice activation

Downloads

Blinds by Peter Meyer brochure download

Product & Technical Brochure

glydea ultra brochure

Exceptional Quality + Build Standards

  • Blinds by Peter Meyer use only the finest components:
  • Cutting edge technology & build quality
  • Backed by Peter Meyer’s 5 year warranty
  • Plus the Peter Meyer renowned level of service
